Four Independent Manager Cabins | Separate External Entrances | Dedicated Workstations & Visitor Seating | Modular Site Office for Mining, Power, Metro, Railway, Highway & EPC Projects

Mechwat Technologies Pvt. Ltd. offers the 40 × 10 ft Portable Project Site Office with Four Independent Office Cabins, an engineered prefabricated building designed to provide organized, private and functional working environments for project managers, engineers, supervisors, department heads, client representatives and consultants at industrial and infrastructure project sites.

Our prefabricated four-cabin site office integrates four individually separated office compartments within a single modular steel structure. Each office features a designated management workstation, seating for two visitors, storage provisions, a window and an independent external entrance.

With a nominal gross floor area of 400 sq. ft. (approximately 37.16 m²), this modular office configuration provides individual working spaces for four key project personnel while accommodating short-duration visitor meetings and routine site coordination.

Designed for mining operations, thermal and renewable power projects, metro rail construction, railway infrastructure, road and highway development, industrial plants, oil and gas facilities, civil engineering projects and major Engineering, Procurement and Construction (EPC) developments, the portable building provides an alternative to constructing several separate permanent site offices.

The proposed Mechwat layout combines compact private offices, functional management desks, dedicated visitor chairs, internal partitions and individually accessible entrances. Its design can be configured with insulated wall panels, weather-resistant roofing, steel structural framework, electrical infrastructure, LED lighting, ventilation, air-conditioning, data connectivity and customized office furniture.

As a prefabricated office cabin and modular infrastructure solutions provider based in Ahmedabad, Gujarat, India, Mechwat offers customizable portable manager cabins, multi-compartment project offices, modular departmental offices and prefabricated industrial site offices for domestic and international project requirements.

Key Features & Benefits

• Four Independent Office Cabins: Separate compartments within one prefabricated structure for managers, engineers, consultants and other designated personnel.
• 40 × 10 ft Modular Office Configuration: Approximately 400 sq. ft. nominal footprint integrating four individual office spaces.
• Separate External Entrances: Each office has a dedicated entrance, allowing independent access without passing through another office.
• Dedicated Management Workstations: Four L-shaped desk configurations, one within each compartment.
• Visitor Seating: Two visitor chairs per office, providing eight visitor seats across the building.
• Office Privacy: Full-height internal partitions can provide visual separation for independent work and discussions.
• Efficient Space Utilization: Four offices are accommodated within one elongated prefabricated building.
• Individual Window Openings: One window shown for each office, supporting daylight and ventilation opportunities.
• Prefabricated Steel Construction: Engineered steel structural framework with suitable external cladding and protective finishes.
• Insulated Wall and Roof Options: Thermal insulation systems can help improve indoor comfort and reduce heat transfer.
• Integrated Electrical Infrastructure: Configurable office lighting, distribution boards, power sockets and communication wiring.
• Air-Conditioning and Ventilation: Independent or project-specific HVAC arrangements can be incorporated.
• Office Furniture and Storage: Manager desks, office chairs, visitor seating, drawers and filing cabinets.
• Independent Departmental Operations: Suitable for allocating separate rooms to project functions such as management, engineering, quality and administration.
• Relocatable Design Option: The structure can be engineered for transportation and relocation, subject to approved lifting arrangements and transportation restrictions.
• Custom Exterior Branding: Door signage, department identification, company colours, logos and project information can be incorporated.

Functional Layout & Space Planning

The Mechwat 40 × 10 ft Portable Project Site Office is divided into four individual office compartments arranged along the length of the building.

Each compartment is equipped with a dedicated office workstation and visitor seating area, enabling different project departments or personnel to work independently.

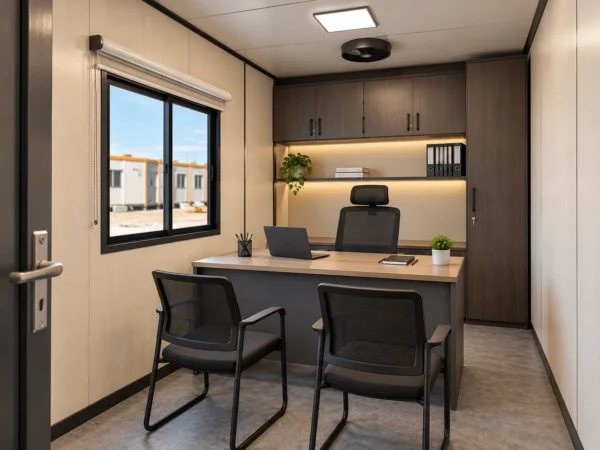

1. Independent Manager Office Cabin

Each of the four cabins can be used as a dedicated office for an individual project manager, department head, engineering supervisor or client representative.

The proposed arrangement in each cabin includes:

• One L-shaped management desk
• One manager’s office chair
• Two visitor chairs
• Dedicated external entrance
• Window opening
• Storage or filing provision
• Computer or laptop workspace
• Optional electrical and data connectivity
• Optional ventilation or air-conditioning

The independent office layout can support private administrative discussions, project reviews and routine coordination activities.

2. Four-Cabin Departmental Allocation

The modular building allows individual office rooms to be assigned according to project requirements.

A typical configuration may include:

Cabin 1 – Project Manager’s Office

For project execution supervision, client coordination, work allocation, daily progress reviews and administrative decisions.

Cabin 2 – Engineering & Planning Office

For engineering documentation, construction planning, scheduling, technical approvals and site coordination.

Cabin 3 – Quality & HSE Administration Office

For quality documentation, inspection planning, safety administration, incident reporting and project compliance records.

Cabin 4 – Client Representative / Contractor Office

For client inspection personnel, consultants, contractor representatives, commercial coordination or other project stakeholders.

These departmental assignments are illustrative. All four cabins have the same general desk-and-visitor-seating arrangement in the supplied drawing.

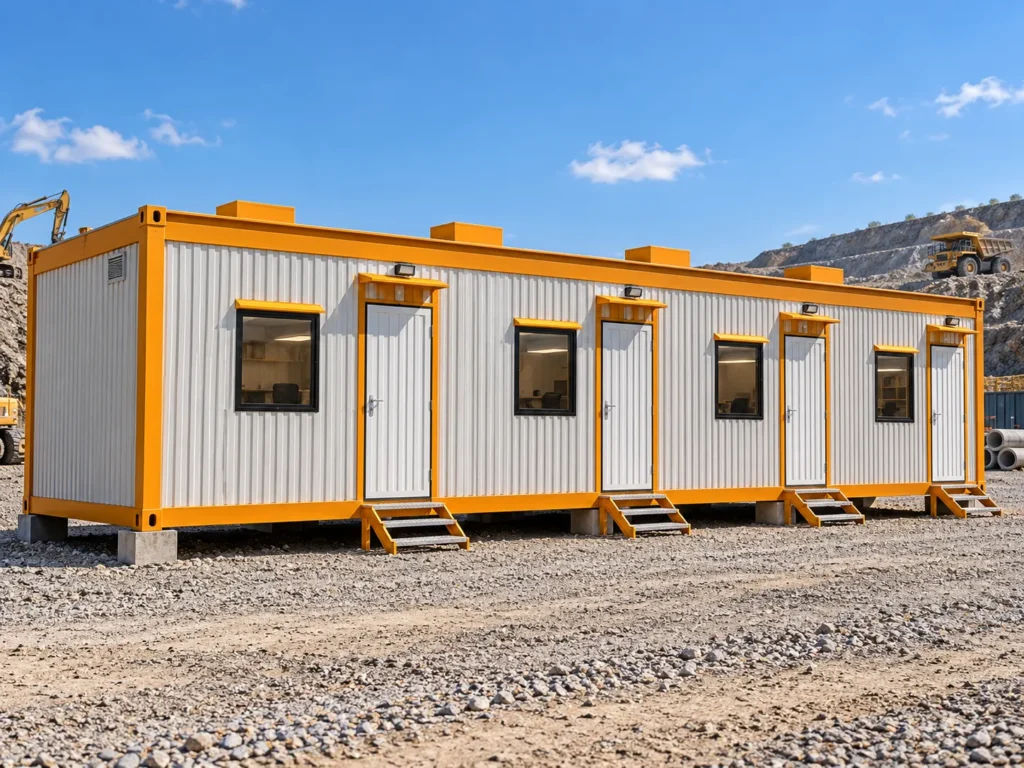

3. Separate External Access

One of the key advantages of the proposed design is the independent external entry for each cabin.

The drawing illustrates four separate personnel doors distributed along one longitudinal elevation.

This arrangement allows project personnel to enter and leave their own office without moving through another department’s workspace.

Operational benefits include:

• Independent access for assigned staff
• Reduced interruption between departments
• More organized visitor movement
• Separation of administrative functions
• Individual room identification
• Flexible allocation to contractors or client representatives

External walkways, door clearances, accessible routes and emergency evacuation arrangements must be planned according to the installation site and applicable regulations.

4. Individual Office Workstations

Each office includes an L-shaped desk arrangement intended to support computer work, document review, project reporting and short discussions.

Available workstation provisions include:

• Desktop or laptop workspace
• Office chair
• Visitor seating
• Electrical outlets
• LAN and internet connectivity
• Desk drawers
• Filing cabinets
• Document shelves
• Printer or scanner provision
• Telephone and intercom connections

Furniture dimensions and circulation clearances should be confirmed in the final approved layout.

5. Visitor Seating & Coordination Area

The proposed plan provides two visitor chairs inside each office.

This enables short meetings involving department heads, engineers, consultants and contractor personnel.

Typical discussions may include:

• Daily work planning
• Construction progress reviews
• Vendor and contractor coordination
• Technical clarification
• Inspection schedules
• Project documentation review
• Commercial administration
• Safety and quality coordination

The seating is intended for individual office discussions rather than a large conference-room function.

6. Office Partitions & Privacy

The building incorporates internal partitions that divide the elongated structure into four separate working compartments.

Available partition options include:

• Modular steel-framed partitions
• Insulated sandwich panels
• Laminated or coated interior finishes
• Full-height internal walls
• Acoustic insulation, where specified
• Concealed electrical routing
• Separate room identification

Acoustic performance depends on the selected partition system and should not be assumed without tested specifications.

7. Windows, Lighting & Indoor Comfort

Each compartment includes a window opening as shown in the supplied elevations.

The building can be configured with suitable interior lighting, ventilation and thermal insulation.

Available options include:

• Aluminium or uPVC windows
• Openable or fixed glazing
• LED interior lighting
• Wall and roof insulation
• Ventilation fans
• Split air-conditioning
• Window blinds
• Suitable commercial flooring
• Durable internal wall panels

The final HVAC design should consider individual room occupancy, computer loads, solar heat gain and local climatic conditions.

8. Electrical, IT & Communication Infrastructure

The portable four-cabin office can be provided with electrical and data infrastructure suitable for independent office operations.

Available provisions include:

• Main electrical distribution board
• Individual office lighting circuits
• Computer and laptop power sockets
• LAN and structured data cabling
• Wi-Fi connectivity
• Telephone and intercom systems
• Printer and scanner connections
• Air-conditioning electrical points
• Optional UPS and backup power
• CCTV and access-control provisions
• Emergency lighting
• Protective earthing and surge protection
• External utility connections

Electrical system specifications shall be finalized according to installed equipment, site supply conditions and applicable electrical safety standards.

Technical Specifications

Parameter	Specification / Proposed Configuration
Product Name	Portable Project Site Office – Four Independent Cabins
Model	40 × 10 ft Four-Cabin Modular Office
Product Category	Prefab Engineering / Prefabricated Offices
Product Type	Multi-Compartment Portable Site Office
Nominal Length	40 ft / 12.19 m
Nominal Width	10 ft / 3.05 m
Nominal Gross Floor Area	400 sq. ft. / 37.16 m²
Number of Office Cabins	4
Office Configuration	Four Independent Rooms
External Doors	4, One per Cabin
Window Openings	4, One per Cabin
Management Workstations	4
Management Desks	4 L-Shaped Configurations
Manager Chairs	4
Visitor Seating	8 Chairs, Two per Cabin
Internal Partitions	Three Principal Dividing Partitions
Office Storage	Desk Drawers / Optional Filing Cabinets
Structural Framework	Engineered Steel Structure
External Wall Options	Profiled MS Sheet / Insulated Sandwich Panels
Roof Construction	Weatherproof Steel Roof System
Wall Insulation Options	Glass Wool / Rock Wool / PIR Panels
Roof Insulation	According to Approved Thermal Design
Interior Wall Finish	Laminated / Coated Panels
Flooring Options	Commercial Vinyl / Vitrified Tiles / Approved Flooring
Main Doors	Steel / Aluminium / Approved Door System
Windows	Aluminium / uPVC Glazed Frames
Electrical Wiring	Protected Copper Wiring
Interior Lighting	LED Lighting
Ventilation	Natural / Mechanical Ventilation
Air-Conditioning	Optional Individual HVAC
Data Connectivity	LAN / Wi-Fi / Structured Cabling
Office Furniture	Manager Desks, Chairs & Visitor Seating
Storage	Optional Cabinets and Filing Units
CCTV	Optional
Access Control	Optional
UPS / Power Backup	Optional
Fire Safety	Project-Specific Protection Provisions
Exterior Surface Finish	Protective Primer & Coating
Exterior Branding	Customizable
Foundation	Engineered Site-Specific Supports
Relocation	Subject to Approved Lifting & Transport Design
Installation	Project-Specific

The nominal dimensions, four office compartments, four independent external entrances, individual workstations and visitor seating are based on the supplied Mechwat drawings. Structural materials, insulation, furniture specifications, electrical systems and other accessories are proposed options requiring confirmation through the approved technical datasheet and bill of materials.

Industry Applications

1. Mining & Mineral Processing Projects

Mining projects require dedicated office accommodation for mine managers, engineers, surveyors, client representatives, project contractors and administrative personnel.

A four-cabin portable site office can provide individual rooms for different management and technical functions near mine construction sites and operational facilities.

Typical applications:

• Open-cast and surface mines
• Coal mining operations
• Iron ore, bauxite and limestone mining
• Mineral processing plants
• Quarry and aggregate operations
• Mine expansion projects
• Equipment maintenance yards
• Remote mining administration camps

The independent rooms can be assigned to mining management, engineering, quality and contractor administration.

2. Thermal Power, Hydropower & Renewable Energy Projects

Power generation projects involve multiple departments and contractors requiring separate working spaces for coordination, engineering and project administration.

Typical applications:

• Thermal power plant construction
• Power plant modernization
• Hydroelectric projects
• Solar power park development
• Wind farm construction
• Substations and transmission facilities
• Battery energy storage projects
• Power plant shutdowns and maintenance

The four-cabin arrangement allows management, planning, engineering and quality personnel to work from designated individual offices.

3. Metro Rail & Urban Transit Projects

Metro developments involve complex coordination among civil contractors, project managers, engineering consultants and client representatives.

The portable four-cabin office can accommodate separate working spaces for key project stakeholders.

Typical applications:

• Metro station construction
• Elevated viaducts
• Underground metro projects
• Tunnel construction
• Metro depots
• Systems installation projects
• Urban transit infrastructure

4. Railway Infrastructure Projects

Railway development projects require offices for technical coordination, construction supervision and project administration.

Typical applications:

• Railway station redevelopment
• Track construction and doubling
• Railway electrification
• Signalling and telecommunications
• Dedicated freight corridors
• Railway depot development
• Bridge and tunnel works

5. Road, Highway, Bridge & Expressway Projects

Road infrastructure projects often operate across distributed construction corridors with multiple work fronts.

A portable office complex with independent cabins can provide separate working areas for project managers, site engineers, consultants and administrative personnel.

Typical applications:

• National highway construction
• Expressway development
• Road widening and rehabilitation
• Bridge and flyover construction
• Toll plaza projects
• Highway maintenance camps
• Remote construction packages

6. Construction & EPC Projects

Large construction projects involve several departments responsible for planning, execution, procurement, quality and safety management.

A four-cabin portable office provides separate working spaces without requiring four standalone buildings.

Typical applications:

• Commercial construction
• Residential township development
• Industrial EPC projects
• Airport and terminal construction
• Warehousing projects
• Institutional buildings
• Water and wastewater infrastructure
• Major civil engineering projects

7. Industrial Plants & Manufacturing Facilities

Industrial facilities may require temporary additional offices during expansion, commissioning, maintenance and shutdown activities.

Typical applications:

• Steel and aluminium plants
• Cement factories
• Heavy engineering facilities
• Automotive manufacturing
• Petrochemical plants
• Industrial maintenance sites
• Manufacturing expansion projects

8. Oil, Gas & Pipeline Projects

The portable office can provide individual administration and engineering rooms for pipeline construction, refinery projects, LNG terminal development and industrial energy infrastructure.

Installation within classified hazardous areas requires separate engineering assessment and suitable electrical equipment selection.

9. Logistics Parks & Warehousing Projects

The building can support site management, engineering supervision, logistics coordination and administrative operations during warehouse construction and industrial logistics development.

10. Government, Institutional & Remote Infrastructure Projects

The cabin can provide independent offices for project authorities, engineering consultants, supervisors and contractors at public infrastructure and institutional development locations.

Customization Options

Mechwat offers project-specific modular office configurations according to staffing, departmental functions, climatic conditions and site requirements.

Available options include:

• Four independent manager cabins
• Four-department site administration office
• Project management and engineering office
• Client representative and consultant offices
• Construction planning and execution cabins
• Quality assurance and HSE administration rooms
• Contractor and subcontractor administration
• Air-conditioned individual offices
• Thermally insulated modular office
• Custom manager desks and visitor seating
• Filing cabinets and document storage
• Independent electrical and data provisions
• LAN and Wi-Fi connectivity
• UPS and backup electricity
• CCTV and access-control systems
• Acoustic partition enhancement
• Customized doors and windows
• Exterior departmental signage
• Corporate colours and branding
• Optional attached pantry or washroom module
• Multi-module project office expansion

Why Choose Mechwat Technologies?

Mechwat Technologies Pvt. Ltd. provides engineered prefabricated buildings, portable cabins, modular offices, industrial facilities, sanitation systems and supporting site infrastructure for industrial, construction and infrastructure applications.

Our four-cabin portable project site offices combine independent office functionality, practical space planning and modular construction within one prefabricated building.

Mechwat’s Key Advantages:

• Engineering-oriented prefabricated office solutions
• Four independent office compartments
• Separate external entrances
• Dedicated management workstations
• Visitor seating in each office
• Efficient 40 × 10 ft layout
• Customizable structural and insulation systems
• Electrical, IT and HVAC integration options
• Industrial and infrastructure project applications
• Project-specific manufacturing and installation support
• Technical and commercial assistance for Indian and international enquiries

Frequently Asked Questions

What is a four-cabin portable project site office?

A four-cabin portable project site office is a prefabricated modular building divided into four independent office rooms. Each room can accommodate a manager or designated project staff member and selected visitors.

What are the dimensions of Mechwat’s four-cabin portable office?

The proposed model measures approximately 40 ft × 10 ft, providing a nominal gross floor area of 400 sq. ft. or 37.16 m².

How many independent office rooms are provided?

The proposed layout contains four separate office compartments within one building.

Does each office have a separate entrance?

Yes. The attached drawing shows four external doors, one serving each office compartment.

How many people can be seated in the cabin?

The layout illustrates four manager chairs and eight visitor chairs, giving twelve seating positions in total. This does not represent certified maximum occupancy, which depends on the approved design and applicable safety requirements.

Does each cabin include a workstation?

Yes. Each office includes a desk-and-chair arrangement suitable for management, administration and computer-based activities.

Can different project departments use separate office rooms?

Yes. The four compartments can be allocated to project management, engineering, planning, quality, HSE administration or client representatives.

Can the portable office be air-conditioned?

Yes. Air-conditioning, ventilation and insulation can be incorporated according to project requirements.

Can the office include computers and internet connectivity?

Yes. Electrical sockets, structured LAN cabling, Wi-Fi, computers, printers and communication equipment may be included in the approved configuration.

Is the four-cabin office suitable for mining and power projects?

Yes. It can provide project management and engineering administration facilities at mining operations, thermal power plants, renewable energy sites and industrial facilities.

Can the building be used for metro, railway and highway construction?

Yes. The prefabricated office can support site management, technical coordination and administration at metro, railway, highway, bridge and other infrastructure projects.

Can the portable office be relocated?

The building can be engineered for relocation between sites, subject to approved lifting arrangements, structural design, transportation requirements and site conditions.

Can the office layout be customized?

Yes. Mechwat can configure compartment dimensions, partitions, workstation furniture, doors, windows, insulation, electrical systems, HVAC and branding according to project requirements.

Can a pantry or washroom be added?

A pantry or washroom may be incorporated through a modified layout or attached module, subject to available floor space, utility connections and approval of the final design.

Does the portable office require a foundation?

Foundation requirements depend on the building’s structural design, soil conditions, site wind loads and intended use. Suitable engineered supports or foundations must be provided.

Who manufactures four-cabin portable offices in India?

Mechwat Technologies Pvt. Ltd., based in Ahmedabad, Gujarat, India, offers customizable prefabricated multi-compartment site offices and modular manager cabins for industrial and infrastructure projects.

How can I request a quotation?

Contact Mechwat with the required cabin dimensions, project location, number of individual offices, furniture, insulation, electrical loads, HVAC and networking requirements to receive a technical and commercial proposal.
