Integrated Manager’s Office | Two Employee Workstations | Separate Pantry | Modular Site Administration Facility for Mining, Power, Metro, Railway, Highway & Construction Projects

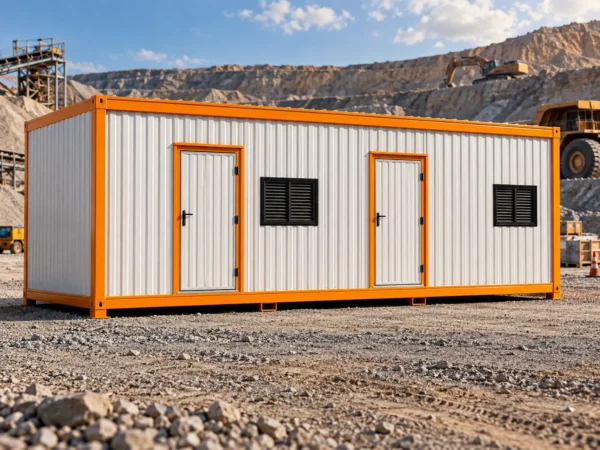

Mechwat Technologies Pvt. Ltd. offers the 24 × 8 ft Portable Site Office Cabin with Manager Office, Employee Workstations and Pantry, an engineered prefabricated office solution designed to provide organized, comfortable and functional working environments at industrial, construction and infrastructure project locations.
Our portable site office with pantry and manager cabin combines three essential facilities within one compact modular building: a separate manager’s office for supervision and administrative work, a shared workstation area for project personnel, and a dedicated pantry or refreshment compartment for staff convenience.
With a nominal gross floor area of 192 sq. ft. (approximately 17.84 m²), the proposed configuration features an enclosed manager’s office with an individual working desk and chair, a central workspace with two employee workstation positions, separate pantry space, internal partitions, storage cabinets, windows and external access provisions.
Designed for mining operations, thermal and renewable power plants, metro rail construction, railway infrastructure, road and highway projects, oil and gas facilities, industrial manufacturing plants, warehouses and large Engineering, Procurement and Construction (EPC) projects, this prefabricated site office cabin provides practical infrastructure where conventional permanent offices may not be available or commercially suitable.
The portable office can be configured with an engineered steel structure, insulated wall and roof systems, weather-resistant exterior cladding, electrical distribution, LED lighting, ventilation, air-conditioning, IT networking, office furniture, pantry counters and project-specific utility systems.
As a prefabricated office and modular infrastructure solutions provider based in Ahmedabad, Gujarat, India, Mechwat offers customizable portable manager office cabins, modular employee workstation offices, portable site offices with pantry and integrated industrial project administration facilities for Indian and international projects.
Key Features & Benefits
- 24 × 8 ft Compact Modular Design: Approximately 192 sq. ft. nominal building footprint combining three workplace functions.
- Separate Manager’s Office: Dedicated management room with desk and chair for supervision, reporting and project coordination.
- Two Employee Workstations: Shared office area containing two individual desk-and-chair positions.
- Dedicated Pantry Compartment: Separate space for refreshments, drinking water and staff convenience provisions.
- Three-Zone Functional Layout: Distinct management, employee workstation and pantry areas within one prefabricated cabin.
- Efficient Use of Site Space: Combines essential office and refreshment infrastructure without requiring multiple separate buildings.
- Integrated Office Furniture: Manager’s desk, employee workstations, office chairs and selected storage facilities.
- Pantry Counter & Storage Options: Configurable cabinets, countertop and optional sink or refreshment equipment.
- Prefabricated Steel Construction: Engineered modular structural framework suitable for industrial site applications.
- Weather-Resistant Exterior: Profiled cladding, protective coatings and suitable roofing for outdoor project deployment.
- Thermal Insulation Options: Insulated walls and roofing can help reduce external heat transfer and improve working conditions.
- Electrical & Lighting Infrastructure: Configurable LED lighting, electrical outlets, distribution boards and equipment connections.
- Ventilation & Air-Conditioning: Optional HVAC and ventilation arrangements based on occupancy and site conditions.
- Computer & IT Connectivity: Provisions for LAN, Wi-Fi, internet, office computers and communication systems.
- Functional Storage: Overhead cabinets, workstation drawers and pantry storage options.
- Relocatable Building Configuration: Can be engineered for relocation, subject to structural design, lifting arrangements and transportation requirements.
- Custom Corporate Branding: Exterior colours, signage, logos and internal finishes can be adapted to project identity.
Office Layout & Functional Space Planning

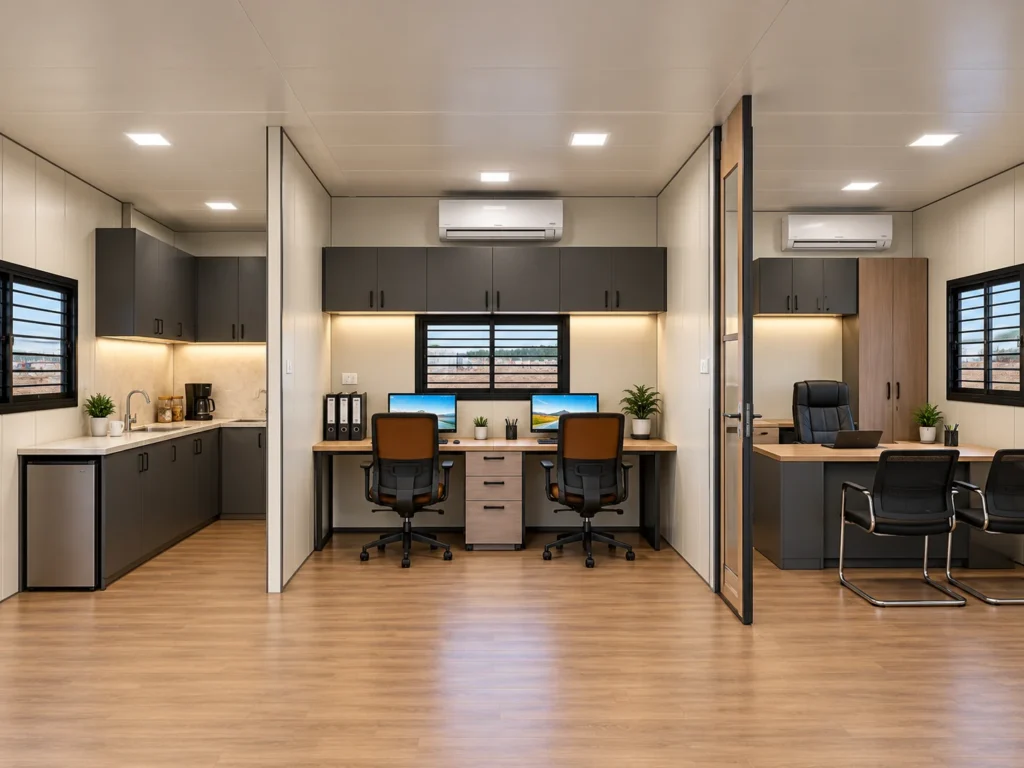

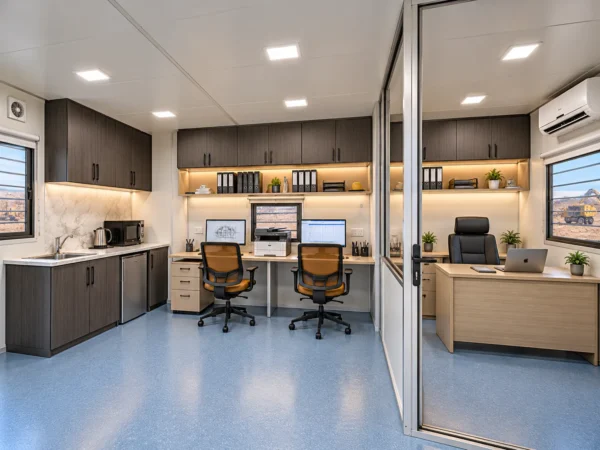

The Mechwat 24 × 8 ft Portable Site Office Cabin is designed around three principal functional zones that support management, administration and staff refreshment requirements.
1. Separate Project Manager’s Office
The proposed layout includes a dedicated enclosed manager’s office at one end of the cabin.
This area provides a defined working space for the project manager, construction manager, site engineer, supervisor or administrative officer responsible for managing project activities.
Proposed facilities include:
- Manager’s office desk
- Office chair
- Storage and filing provisions
- Electrical sockets
- Computer or laptop workspace
- Lighting
- Window provision
- Optional air-conditioning
- Data and communication connectivity
Typical management activities include:
- Daily project coordination
- Site execution supervision
- Engineering documentation
- Contractor communication
- Planning and scheduling
- Material procurement approvals
- Commercial administration
- Project reporting
- Quality and safety coordination
- Staff supervision
- Technical decision-making
The enclosed arrangement helps establish a distinct management workspace within the shared site office facility.
2. Two-Person Employee Workstation Area
The central portion of the cabin contains two workstation positions, shown with desks and office chairs in the supplied drawing.
This area can accommodate site engineers, planning personnel, documentation teams and administrative employees.
Each workstation may be equipped with a computer or laptop, electrical outlets, data connection and selected storage accessories.
Typical workstation functions include:
- Project planning and scheduling
- Engineering drawing review
- Quantity surveying and billing
- Quality assurance and quality control documentation
- Material and inventory records
- Procurement administration
- Contractor coordination
- Daily progress reporting
- Document control
- Technical correspondence
- Site administration
- Project monitoring
The final furniture dimensions and circulation clearances should be confirmed against the approved layout.
3. Dedicated Pantry & Refreshment Compartment
The proposed office includes a separate end compartment suitable for pantry and staff refreshment functions.
This provides an organized area for drinking water, beverages and limited food preparation without requiring a separate external refreshment cabin.
Available pantry provisions include:
- Pantry countertop
- Storage cabinets
- Drinking water dispenser
- Optional sink and faucet
- Optional water storage tank
- Electrical sockets
- Mini-refrigerator provision
- Microwave provision
- Beverage preparation area
- Optional exhaust fan
- Lighting
- Approved wastewater drainage
Where cooking, heating or other higher-load appliances are proposed, suitable ventilation, electrical and fire-safety provisions must be incorporated.
The final pantry equipment schedule will depend on the client’s requirements and approved utility connections.
4. Internal Partitions & Room Separation
The three functional areas are separated by internal partition arrangements shown in the supplied concept.
The layout helps differentiate management activities, employee work and pantry use.
Depending on project requirements, partitions may be manufactured using insulated sandwich panels or other approved modular wall systems.
Door arrangements, access circulation, visual privacy and acoustic performance can be configured according to the final project specification.
5. Office Storage & Workspace Organization
The drawings show storage cabinets and worktop arrangements.
Available storage configurations may include:
- Overhead office cabinets
- Workstation drawers
- Document filing cabinets
- Manager’s storage compartments
- Pantry storage cabinets
- Lockable administrative storage
- Office equipment shelves
Cabinet sizes, fittings and load capacities must be specified in the approved furniture schedule.
6. Electrical, Lighting & IT Systems
The portable site office can incorporate the necessary electrical and communication infrastructure for daily administrative operations.
Available provisions include:
- Main electrical distribution board
- LED interior lighting
- Individual workstation power sockets
- Manager’s workstation power
- Computer and printer connections
- LAN and Wi-Fi connectivity
- Telephone and intercom provisions
- Pantry electrical sockets
- Optional UPS and backup electricity
- Air-conditioning connections
- Ventilation fans
- Emergency lighting
- Earthing and circuit protection
- Protected cable routing
Electrical loading and distribution must account for computer equipment, air-conditioning and any pantry appliances.
7. Ventilation, Insulation & Indoor Comfort
The cabin can be designed with suitable thermal and environmental provisions to support routine occupation under industrial and construction site conditions.
Available options include:
- Insulated wall panels
- Insulated roof
- Aluminium or uPVC windows
- LED lighting
- Mechanical ventilation
- Split air-conditioning
- Pantry ventilation
- Commercial-grade flooring
- Interior wall panelling
- Window blinds
- Acoustic treatment, where specified
The final ventilation and HVAC requirements depend on occupancy, local climate, appliance loads and insulation performance.
Technical Specifications
| Parameter | Specification / Proposed Configuration |
|---|---|
| Product Name | Portable Site Office with Manager Office, Workstations & Pantry |
| Product Category | Prefab Engineering / Prefabricated Offices |
| Product Type | Modular Three-Zone Site Administration Cabin |
| Nominal Length | 24 ft / 7.32 m |
| Nominal Width | 8 ft / 2.44 m |
| Nominal Gross Floor Area | 192 sq. ft. / 17.84 m² |
| Height | As per Approved Drawing |
| Functional Layout | Manager Office + Workstation Area + Pantry |
| Manager’s Office | 1 Separate Office |
| Manager Workstation | 1 Desk and Chair |
| Employee Workstations | 2 Positions Illustrated |
| Pantry | 1 Separate Compartment |
| Internal Partitions | Modular Partition Arrangement |
| Storage | Overhead / Lower Cabinets |
| Entrance Doors | As per Approved Layout |
| Windows | Multiple Openings |
| Structural Framework | Engineered Steel Structure |
| External Wall Options | Profiled MS Sheet / Insulated Sandwich Panels |
| Roof Construction | Weather-Resistant Steel Roof |
| Wall Insulation Options | Glass Wool / Rock Wool / PIR Panels |
| Roof Insulation | According to Approved Design |
| Internal Wall Finish | Laminated / Coated Panels |
| Flooring Options | Commercial Vinyl / Vitrified Tiles / Approved Finish |
| Door Options | Steel / Aluminium / Approved Systems |
| Window Options | Aluminium / uPVC |
| Electrical | Project-Specific Wiring and Distribution |
| Lighting | LED Lighting |
| Ventilation | Natural / Mechanical |
| Air-Conditioning | Optional HVAC |
| Data Connectivity | LAN / Wi-Fi |
| Manager Furniture | Desk and Chair |
| Employee Furniture | Two Workstation Desks and Chairs |
| Pantry Furniture | Countertop and Storage |
| Pantry Sink | Optional |
| Water Supply | Site Connection / Optional Tank |
| Wastewater Drainage | Project-Specific |
| UPS / Backup Power | Optional |
| Fire Safety | Project-Specific Protection Provisions |
| Exterior Coating | Protective Paint System |
| Exterior Branding | Customizable |
| Foundation | Engineered Site-Specific Supports |
| Relocation | Subject to Approved Structural and Transport Design |
| Installation | Project-Specific |
The nominal dimensions, separate rooms, two employee workstations, management furniture and pantry space are based on the supplied Mechwat drawings. Structural materials, insulation, pantry equipment, electrical systems, utilities and optional accessories shall be finalized through approved engineering drawings and the bill of materials.
Industry Applications
1. Mining & Mineral Processing Projects
Mining operations frequently require administrative and engineering support facilities near excavation areas, mineral processing plants, equipment yards and remote work locations.
The Mechwat Portable Site Office with Manager Cabin and Pantry provides an integrated working environment for mining engineers, project managers, site supervisors and administrative personnel.
Typical applications:
- Open-cast and surface mining
- Coal mining
- Iron ore and bauxite mining
- Limestone mining
- Mineral beneficiation plants
- Quarry and aggregate operations
- Mine expansion projects
- Remote mining camps
- Mining contractor offices
Key benefit: A combined office and refreshment facility reduces the need for separate small administrative and pantry buildings.
2. Thermal Power, Hydropower & Renewable Energy Projects
Power projects involve multiple engineering disciplines and require on-site office infrastructure for coordination, documentation and supervision.
Typical applications:
- Thermal power plant construction
- Power plant modernization
- Hydroelectric projects
- Solar power plant construction
- Wind farm installations
- Electrical substations
- Transmission infrastructure
- Battery energy storage projects
- Power plant shutdowns and maintenance
The manager’s office supports supervision, while the workstation area provides daily engineering and administrative space.
3. Metro Rail & Urban Transit Projects
Metro construction involves complex contractor coordination, civil works, mechanical installations, electrical systems and project monitoring.
The portable office supports site management and administrative teams near construction activities.
Typical applications:
- Metro station construction
- Elevated viaducts
- Underground metro projects
- Tunnel construction support
- Metro depots
- Rail systems installation
- Urban transit infrastructure
4. Railway Infrastructure Projects
Railway construction and modernization require dedicated site supervision and documentation facilities.
Typical applications:
- Railway station redevelopment
- Track construction and doubling
- Railway electrification
- Signalling and telecommunications
- Dedicated freight corridor projects
- Railway depot development
- Railway bridge and tunnel construction
5. Road, Highway & Expressway Projects
Road infrastructure projects often involve distributed worksites and temporary contractor camps.
A compact manager-and-staff office with pantry can provide convenient workspace and refreshment arrangements for project teams.
Typical applications:
- National highway construction
- Expressway development
- Road rehabilitation
- Bridge and flyover construction
- Toll plaza projects
- Highway maintenance camps
- Remote road construction packages
6. Construction & EPC Projects
Construction and engineering companies require project offices for management, planning, documentation and coordination.
Typical applications:
- Commercial building construction
- Residential developments
- Industrial EPC projects
- Airports and transport terminals
- Institutional construction
- Warehousing projects
- Water and wastewater infrastructure
- Major civil engineering projects
7. Industrial Plants & Manufacturing Facilities
Industrial facilities may require temporary or additional office space during plant expansion, modernization, equipment installation and maintenance.
Typical applications:
- Steel and aluminium plants
- Cement factories
- Heavy engineering facilities
- Automotive manufacturing
- Petrochemical plants
- Industrial maintenance shutdowns
- Warehouse and logistics facilities
8. Oil, Gas & Pipeline Projects
The portable office may be deployed for management and administrative operations at pipeline construction, refinery expansion, LNG terminal development and remote energy infrastructure locations.
Installations within classified hazardous areas require separate engineering and equipment suitability assessments.
9. Warehousing, Logistics & Material Handling Facilities
The cabin can support warehouse supervisors, logistics coordinators, material controllers and administrative personnel at industrial logistics facilities.
10. Government, Institutional & Remote Infrastructure Projects
The office can provide compact project administration infrastructure at public construction sites, institutional developments, utility projects and remote engineering installations.
Available Customization Options
Mechwat offers project-specific portable office configurations according to workspace, utilities, project duration and operating conditions.
Available options include:
- Manager office with two employee workstations
- Site office with dedicated pantry
- Project administration office with pantry
- Engineering supervisor and staff office
- Client representative and contractor office
- Construction planning and documentation office
- Procurement and material management office
- Air-conditioned portable office
- Insulated modular office
- Expanded electrical and networking provisions
- Custom office furniture
- Lockable filing cabinets
- Pantry countertop and cabinets
- Water supply and drainage provisions
- Optional refrigerator and drinking water equipment
- UPS and backup electricity
- CCTV and access-control provisions
- Customized internal partitions
- Exterior corporate branding
- Optional attached washroom module
- Multi-module project office expansion
Why Choose Mechwat Technologies?
Mechwat Technologies Pvt. Ltd. provides engineered prefabricated buildings, portable office cabins, modular workspaces, industrial facilities, sanitation systems and supporting site infrastructure solutions for construction, mining, power and industrial projects.
Our Portable Site Office with Manager Cabin, Workstations and Pantry combines three functional areas within one space-efficient prefabricated structure.
Mechwat’s Key Advantages:
- Engineering-oriented prefabricated building solutions
- Dedicated manager’s office
- Two employee workstation positions
- Separate pantry and staff refreshment space
- Compact 24 × 8 ft layout
- Configurable structural and insulation systems
- Electrical, networking and HVAC options
- Integrated furniture and storage
- Solutions for mining, power, metro, railway and highway projects
- Project-specific manufacturing and installation support
- Technical and commercial assistance for Indian and international enquiries
Frequently Asked Questions
What is a portable site office with pantry?
A portable site office with pantry is a prefabricated building that combines administrative or engineering workspaces with a designated refreshment area. It may include manager offices, employee workstations, pantry counters, storage and utility provisions.
What is the size of Mechwat’s portable office with manager cabin and pantry?
The proposed model has nominal dimensions of 24 ft × 8 ft, providing approximately 192 sq. ft. or 17.84 m² of gross floor area.
What facilities are included in the proposed layout?
The drawing illustrates a separate manager’s office, two employee workstations, a pantry compartment, storage cabinets, doors and windows.
Does the cabin have a separate manager’s office?
Yes. The layout provides a dedicated management room separated from the main employee workstation area.
How many employee workstations are available?
The supplied drawing shows two employee workstation positions in addition to the manager’s desk.
Does the office include a pantry?
Yes. The proposed configuration includes a designated pantry compartment. Specific equipment, plumbing and appliances depend on the final approved supply scope.
Can a pantry sink, refrigerator and drinking water dispenser be provided?
Yes. Suitable pantry plumbing, appliances and electrical provisions can be incorporated according to project requirements.
Can the office be air-conditioned?
Yes. Air-conditioning, ventilation and thermal insulation can be incorporated according to climatic and operational requirements.
Can computers and internet connectivity be installed?
Yes. Electrical sockets, computers, LAN, Wi-Fi, printer connections and communication systems may be included in the approved configuration.
Is the office suitable for mining and power projects?
Yes. It can provide management, engineering administration and staff refreshment facilities at mining operations, power plants, renewable energy projects and industrial sites.
Can the cabin be used for metro, railway and highway construction?
Yes. The prefabricated structure can support site administration and project coordination at metro, railway, highway, bridge and other infrastructure projects.
Can the portable office be relocated?
The cabin can be engineered for relocation between sites, subject to approved structural design, lifting arrangements, transportation restrictions and installation requirements.
Can the office layout be customized?
Yes. Mechwat can configure room partitions, workstation arrangements, furniture, pantry facilities, storage, electrical systems, insulation, HVAC and exterior branding.
Can a toilet be added to the office cabin?
A toilet may be included through a revised layout or separate attached module, subject to space availability and suitable water and wastewater infrastructure.
Does the office cabin need a foundation?
Foundation requirements depend on soil conditions, structural design, intended loading and local regulations. Suitable engineered foundations or support systems should be provided.
Who manufactures portable offices with manager cabins and pantry facilities in India?
Mechwat Technologies Pvt. Ltd., based in Ahmedabad, Gujarat, India, offers customizable prefabricated site offices with manager cabins, employee workstations and pantry facilities for construction and industrial projects.
How can I request a quotation?
Contact Mechwat with the required cabin dimensions, installation location, number of workstations, manager office requirements, pantry equipment, electrical loads, HVAC, insulation and other customization requirements to obtain a technical proposal and commercial quotation.
