Modular Multi-Person Workspace | Dedicated Supervisor Cabin | Engineered Portable Office for Industrial & Infrastructure Projects

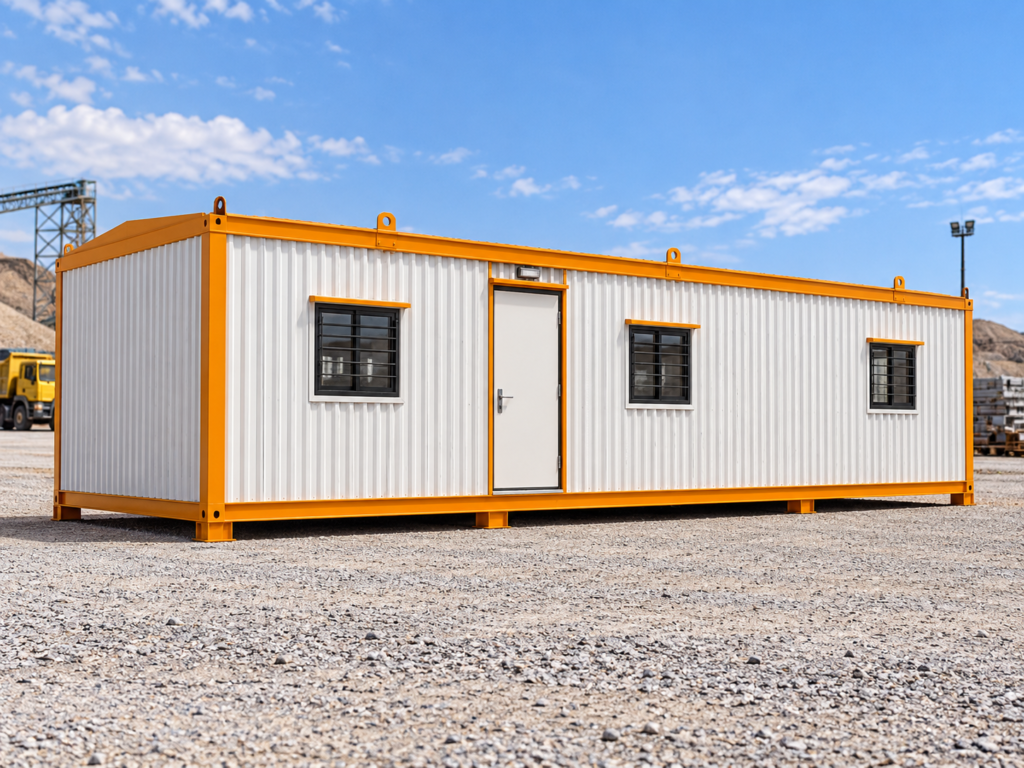

Mechwat Technologies Pvt. Ltd. offers the 40 × 10 ft Portable Workstation Office, an engineered prefabricated office building designed to provide organized, functional and comfortable working environments for project engineers, supervisors, administrative personnel and site management teams.
Developed for mining operations, power generation projects, metro rail construction, highway development, railway infrastructure, industrial plants and large EPC projects, this modular site office cabin combines a multi-person workstation area with a separate enclosed management office within a compact and relocatable building configuration.
With a nominal floor area of 400 sq. ft. (37.16 m²), the proposed layout features two rows of workstations arranged along the longer sides of the main office, a central circulation aisle, a dedicated supervisor or project manager’s cabin, multiple windows and convenient entry access.
The prefabricated steel structure can be configured with insulated walls and roofing, electrical distribution, LED lighting, ventilation, air-conditioning, data connectivity, office furniture and project-specific utility provisions.
As a portable office cabin and modular building solutions provider based in Ahmedabad, Gujarat, India, Mechwat offers customizable prefabricated workstation offices for industrial, infrastructure, institutional and remote project applications.
Key Features and Benefits
- 40 × 10 ft Modular Office Layout: Nominal 400 sq. ft. prefabricated building designed for multi-person office operations.
- Open-Plan Workstation Area: Two opposing desk runs support organized individual computer workstations and collaborative office functions.
- Dedicated Management Cabin: Separate enclosed office for the project manager, site in-charge, supervisor or administrative personnel.
- Central Circulation Aisle: Practical movement space between workstation rows for personnel access and routine office operations.
- Prefabricated Steel Construction: Engineered structural framework with customizable external cladding and protective finishes.
- Insulated Walls and Roofing: Optional thermal insulation systems to reduce heat transfer and support indoor comfort.
- Multiple Window Openings: Windows distributed along the cabin elevations provide natural daylight and ventilation opportunities.
- Integrated Electrical Systems: Configurable lighting, switches, sockets, electrical distribution and power supply for office equipment.
- Air-Conditioning and Ventilation: Optional HVAC systems for comfort in demanding industrial and climatic conditions.
- Computer and Network Connectivity: Provision for LAN, Wi-Fi, data cabling, communication systems and workstation power outlets.
- Ergonomic Office Furniture: Configurable workstation tables, office chairs, storage cabinets and management furniture.
- Relocatable Building Configuration: Suitable for transfer between project locations where lifting, structural and transport provisions have been engineered.
- Project-Specific Branding: Exterior colour schemes, company identity, signage and interior finishes can be customized.
- Flexible Utility Integration: Optional backup electricity, UPS, security equipment and communication infrastructure.
Proposed Layout & Functional Space Planning
The 40 × 10 ft Mechwat Portable Workstation Office is designed with two principal functional areas: an enclosed management office and a larger open-plan workstation section.

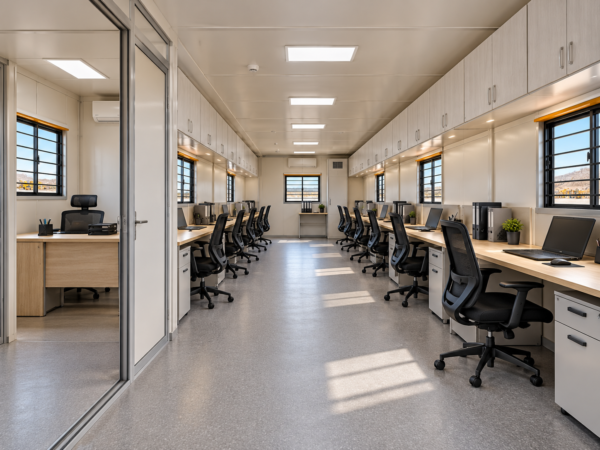

A. Open-Plan Multi-Person Workstation Area
The main workstation area occupies the larger portion of the building and features two continuous workstation rows arranged along the opposite longitudinal walls.
Each desk position can be configured for a desktop computer or laptop, office chair, electrical outlet, data connection and essential working accessories.
The central aisle enables movement between individual workstations and provides access to the management cabin and entry point.
Typical functions include:
- Engineering design and documentation
- Project planning and scheduling
- Site administration and coordination
- Quality assurance and quality control documentation
- Procurement and material management
- Billing, quantity surveying and project accounts
- Contractor coordination and reporting
- Digital project monitoring
- Document control and reporting
- Operations and maintenance administration
The final workstation capacity should be confirmed through the approved furniture plan, ergonomics requirements, circulation clearances and applicable building and fire-safety provisions.

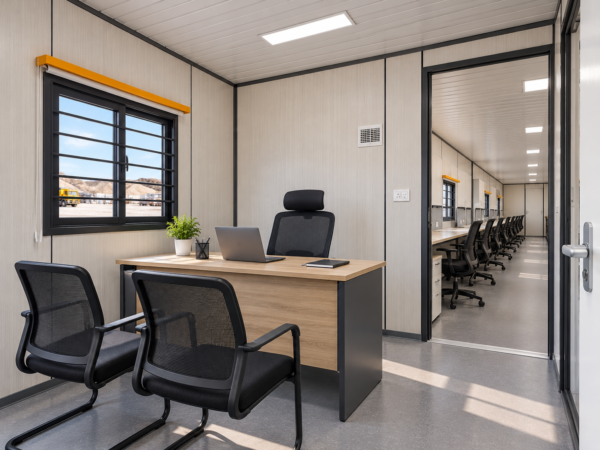

B. Separate Project Manager / Supervisor Office
A dedicated enclosed office is positioned at one end of the workstation building, as illustrated in the supplied layout.
This space includes a management workstation and visitor seating arrangement, providing a suitable environment for supervision, administrative decisions, private discussions and coordination meetings.
Typical functions include:
- Project manager’s office
- Site in-charge workstation
- Engineering manager’s cabin
- Construction manager’s office
- Quality manager’s office
- Administrative supervision
- Contractor and vendor discussions
- Site coordination meetings
The partitioned layout helps separate management activities from the main shared working area.
C. Central Movement and Access
A continuous internal aisle provides circulation between workstation rows.
The cabin layout includes a dedicated entry door and several window openings along the external walls.
Final door sizes, access clearances, internal aisle width and evacuation arrangements shall be coordinated with the approved architectural layout and applicable safety requirements.
D. Electrical, IT and Communication Infrastructure
The portable workstation office can incorporate electrical and communication facilities suited to computer-intensive operations.
Available provisions include:
- Main electrical distribution board
- LED office lighting
- Individual workstation power sockets
- Computer and monitor power connections
- LAN networking and structured data cabling
- Wi-Fi router and internet connectivity provisions
- Printer and scanner power connections
- UPS and backup power arrangements
- CCTV and access-control provisions
- Emergency lighting and safety signage
Electrical circuits, protective devices, earthing and installed loads shall be designed according to the project-specific electrical requirements.
Technical Specifications
| Parameter | Proposed Specification |
|---|---|
| Product Name | Portable Workstation Office |
| Model | 40 × 10 ft Modular Workstation Office |
| Product Category | Prefab Engineering / Prefabricated Offices |
| Product Type | Portable Multi-Person Site Office Cabin |
| Nominal Length | 40 ft / 12.19 m |
| Nominal Width | 10 ft / 3.05 m |
| Nominal Floor Area | 400 sq. ft. / 37.16 m² |
| Layout Configuration | Open Workstation Area + Enclosed Management Cabin |
| Workstation Arrangement | Two Opposing Rows of Office Desks |
| Internal Circulation | Central Aisle |
| Management Cabin | 1 Separate Compartment |
| Entry Arrangement | Dedicated Entrance Door |
| Window Configuration | Multiple Windows as per Drawing |
| Structural System | Engineered Steel Framework |
| External Wall Options | Profiled MS Sheet / Insulated Sandwich Panels |
| Roof Options | Insulated Steel Roofing System |
| Wall Insulation Options | Glass Wool / Rock Wool / PIR Panels |
| Internal Partitions | Modular Wall Partition System |
| Interior Wall Finish | Laminated / Coated Interior Panels |
| Flooring Options | Commercial Vinyl / Vitrified Tile / Other Approved Finish |
| Doors | Steel / Aluminium / Other Approved Type |
| Windows | Aluminium / uPVC Glazed Windows |
| Electrical | Project-Specific Copper Wiring and Distribution |
| Lighting | LED Office Lighting |
| Ventilation | Natural and/or Mechanical Ventilation |
| Air-Conditioning | Optional Split AC / Engineered HVAC |
| Data Connectivity | LAN / Wi-Fi / Structured Cabling Provision |
| Workstations | Modular Desks and Office Chairs |
| Management Furniture | Office Table and Visitor Seating |
| Storage | Optional Document Cabinets and Filing Units |
| UPS / Power Backup | Optional |
| Fire Safety | Project-Specific Fire Protection Provisions |
| Exterior Protection | Protective Coating and Weatherproof Sealing |
| Exterior Branding | Customizable |
| Installation | Approved Foundation / Support Arrangement |
| Relocation | Subject to Engineered Lifting and Transportation Design |
The nominal dimensions, basic room arrangement, desk rows, management office, entry and window openings are derived from the supplied concept drawings. Materials, insulation systems, electrical equipment, furniture specifications and utilities are proposed configuration options, subject to final engineering approval.
Applications of Portable Workstation Offices
1. Mining and Mineral Processing Projects
Mining operations often require dedicated administrative and technical workspaces near excavation sites, mineral processing facilities, equipment maintenance yards and remote project camps.
Mechwat’s Portable Workstation Office provides a structured environment for mining engineers, surveyors, planning personnel, maintenance teams, safety administrators and site management.
Typical applications:
- Open-cast mining operations
- Mineral processing and beneficiation plants
- Quarry and aggregate projects
- Mining project expansion works
- Heavy equipment maintenance facilities
- Remote mine administration offices
- Contractor and engineering coordination centres
The cabin can be customized with dust-resistant finishes, suitable HVAC, electrical infrastructure, IT connectivity and project-specific furniture.
2. Thermal Power, Hydropower and Renewable Energy Projects
Power generation projects require coordinated office facilities for engineering, construction, commissioning, maintenance, documentation and contractor management.
The portable workstation office can accommodate multiple technical personnel while providing a separate management cabin.
Typical applications:
- Thermal power plant construction
- Power plant shutdown and maintenance projects
- Hydroelectric power developments
- Solar power park construction
- Wind farm infrastructure projects
- Substations and transmission projects
- Battery energy storage installations
- Power plant expansion and modernization programmes
The office can support engineering documentation, daily progress reporting, work planning, procurement coordination and project supervision.
3. Metro Rail and Urban Transit Projects
Metro construction projects involve civil engineering, structural works, elevated viaducts, underground stations, tunnelling operations and multiple contractor packages.
A prefabricated workstation office can provide a consolidated workspace for project engineers, planning teams, document controllers and construction supervisors.
Typical applications:
- Metro station construction
- Elevated viaduct projects
- Underground metro construction
- Tunnel boring machine support areas
- Metro depot construction
- Rail systems installation projects
- Metro maintenance facilities
Optional arrangements include networking, project monitoring displays, document storage and an enclosed site manager’s office.
4. Road, Highway and Expressway Projects
Road infrastructure projects frequently require relocatable project offices across long construction corridors.
The Mechwat 40 × 10 ft workstation office can serve as a project administration and engineering support facility near highway construction packages, bridges, toll plazas and equipment yards.
Typical applications:
- National highway construction
- Expressway development
- Road widening and rehabilitation
- Bridge and flyover construction
- Toll plaza development
- Highway maintenance projects
- Road construction contractor camps
The prefabricated structure can be designed for relocation between project locations, subject to applicable transportation and handling requirements.
5. Railway Infrastructure Projects
Railway construction and modernization projects require working environments for engineering, planning, supervision, quality control and administrative functions.
Typical applications:
- Railway station redevelopment
- Railway track construction and doubling
- Electrification projects
- Signalling and telecommunications work
- Freight corridor development
- Railway depot construction
- Bridge and tunnel projects
- Track maintenance programmes
The portable office can support site documentation, project scheduling, contractor coordination and technical administration.
6. Industrial Plants and Manufacturing Facilities
Industrial plants often require additional office infrastructure during construction, commissioning, equipment upgrades, production expansion and maintenance shutdowns.
Typical applications:
- Steel and aluminium plants
- Cement manufacturing facilities
- Refineries and petrochemical complexes
- Automotive and engineering factories
- Industrial construction projects
- Maintenance shutdown operations
- Warehouse and logistics developments
- Temporary engineering offices
The modular building can accommodate project engineers, quality personnel, planning teams, supervisors and administrative staff.
7. Oil, Gas and Pipeline Projects
Oil and gas projects may require site offices in geographically dispersed or remote operating locations.
Portable workstation cabins can be configured for engineering teams, construction management, document control and administrative operations.
Typical applications:
- Pipeline construction
- Refinery expansion projects
- LNG terminal construction
- Tank farm development
- Gas processing facilities
- Industrial maintenance works
Electrical equipment, ventilation and building safety requirements must be assessed according to the site’s hazardous-area classification where applicable.
8. Large Construction and EPC Projects
Commercial, residential and industrial construction projects require organized on-site facilities for multiple engineering and management functions.
Typical applications:
- Commercial building developments
- Residential township construction
- Airports and transport terminals
- Institutional building projects
- Industrial EPC installations
- Water and wastewater infrastructure
- Warehouses and distribution centres
- Public infrastructure development
The workstation office enables engineering, planning, procurement, billing and document control activities to operate from one shared location.
9. Remote Infrastructure and Temporary Project Camps
For remote sites where permanent administrative buildings are unavailable, a portable workstation office can provide essential workspace infrastructure.
Project-specific options may include water storage, backup power, solar energy integration, air-conditioning, data connectivity and security installations.
Customization Options
Mechwat offers project-specific configurations based on workforce strength, office functions, climatic conditions, transport requirements and site infrastructure.
Available options include:
- Open-plan workstation office
- Workstation office with project manager cabin
- Combined engineering and administration office
- Planning and document control office
- Quality assurance and quality control office
- Site execution and construction management office
- Procurement and material management office
- Operations and maintenance administration office
- Air-conditioned office cabins
- Insulated office cabins for hot or cold climates
- Integrated IT and networking systems
- UPS and emergency power provisions
- Custom furniture and storage configurations
- Exterior branding and signage
- Optional attached washroom or pantry module
- Multi-module office expansion
Why Choose Mechwat Technologies?
Mechwat Technologies Pvt. Ltd. provides engineered prefabricated buildings, portable office cabins, modular workspaces, security cabins, sanitation systems and integrated site infrastructure solutions for industrial, construction and infrastructure applications.
Our portable workstation offices are designed to combine practical space planning, structural durability, customizable utilities and project-specific engineering within a prefabricated building system.
Mechwat’s Key Advantages:
- Engineering-oriented prefabricated office solutions
- Functional multi-person workstation arrangements
- Separate management and supervision space
- Customizable structural and insulation systems
- Integrated electrical, IT and HVAC provisions
- Flexible office furniture and interior layouts
- Project-specific manufacturing and installation planning
- Solutions for mining, energy, metro, rail, highway and EPC projects
- Technical and commercial support for Indian and international enquiries
Frequently Asked Questions
What is a portable workstation office?
A portable workstation office is a prefabricated building designed to accommodate multiple office personnel within a relocatable or modular structure. It may include individual desks, computer workstations, management cabins, electrical systems, networking and air-conditioning.
What is the size of Mechwat’s portable workstation office?
The proposed model has nominal dimensions of 40 ft × 10 ft, providing approximately 400 sq. ft. (37.16 m²) of gross floor area.
What is included in the 40 × 10 ft office layout?
The supplied drawing features an open-plan workstation area with two opposing desk rows, a central circulation aisle, a separate management office, multiple windows and an entry door.
How many people can work in the portable office?
The layout illustrates multiple individual workstation positions and separate management seating. The final permissible occupancy depends on the approved furniture arrangement, usable internal dimensions, ventilation, circulation clearances and applicable safety requirements.
Can the workstation office be air-conditioned?
Yes. Air-conditioning and mechanical ventilation can be incorporated into the approved design according to climatic conditions, expected occupancy and electrical load requirements.
Can computers, networking and CCTV be installed?
Yes. The building can be configured with electrical sockets, structured data cabling, internet connectivity, computer workstations, CCTV provisions and suitable communication equipment.
Is the office suitable for mining and power projects?
Yes. Portable workstation offices can support engineering, planning, administration and site management at mining facilities, power plants, renewable energy projects and remote industrial locations.
Can the portable office be relocated?
The structure can be engineered for relocation, subject to suitable lifting provisions, structural design, transport arrangements, route restrictions and site conditions.
Can the office include a manager’s cabin?
Yes. The proposed 40 × 10 ft layout already provides a dedicated enclosed management compartment separated from the main workstation area.
Can the cabin be customized for metro, highway and railway projects?
Yes. Mechwat offers project-specific layout, furniture, electrical, HVAC, networking, insulation and branding options for metro, highway, railway and other infrastructure applications.
Does the portable workstation office require a permanent foundation?
Foundation requirements depend on the module’s structural design, soil conditions, intended loading and site constraints. Suitable engineered foundations or support systems must be provided.
What is the difference between a portable workstation office and a conventional site office?
A portable workstation office uses a prefabricated building system that can be manufactured and prepared before site installation. A conventional site office may be constructed primarily on-site. Differences in cost, installation time, transportability and service life depend on the selected design.
Who manufactures portable workstation office cabins in India?
Mechwat Technologies Pvt. Ltd., based in Ahmedabad, Gujarat, India, offers customizable prefabricated workstation offices and modular site office infrastructure for industrial, construction, mining, power and infrastructure projects.
How can I request a quotation?
Contact Mechwat with the project location, required cabin size, workstation capacity, furniture layout, insulation requirements, electrical loads, networking requirements and preferred accessories to receive a technical proposal and commercial quotation.
