CSR Project  : Bio Toilet Installation In School By MCX

As a part of CSR [Corporate Social Responsibility] Project,  Multi Commodity Exchange of India Ltd. is focused on creating a positive social and environment impact by leveraging its resources and expertise in CSR thrust project like :  BioToilet to Rural Area School, Soil Testing Initiative, Organic Farming/Vermi Compost Fertilizer Project, Gramin Suvidha Kendra Programme,  Development of Watershed Programme, Drip Irrigation Programme, Deepening/Renovation  of Dug Well, and many other activities.

To Promote the preventive health care  and improving sanitation at school and  to create awareness  on health and sanitation among students in rural areas. MCX India Ltd. has installed the Biotoilet in various school of Uttar Pradesh  State.

School List of  Biotoilet Installed under CSR Project  Activity of MCX India Ltd are as :

1] Siddheshwar Sikkhaniketan at Village Birnava, Deeh, Nasirabad, Raebareli District.

2] Shree Mohan Smarak Public School at Village Peedhi, Deeh, Nasirabad, Raebareli District.

3] Pandit Dinanath Mishra Inter College at Village Lalganj, Lalganj,  Raebareli District.

4] Srimati Ramadevi Kumari Sobhadevi at Village Lalganj, Lalganj, Raebareli District.

5] Primary School Kurha at Village Kurha, Chhatoh, Jais, Raebareli District.

6] Primary School Kanta at Village Kanta, Chhatoh, Jais, Raebareli District.

7] Jharkhandeswar Vidyapeeth at Village Matka, Salon, Raebareli District.

8]  Swami Vivekanand Inter College at Village Suchi, Salon, Raebareli District.

9] Radhakrishna Baal Vidya Mandir at Village Chauhatta, Dalmau, Raebareli District.

10] Naveen Vidya Mandir at Village Kusuwapur,Dalmau Raebareli District.

11] Gyan Vidhya Mandir at Village Thulwasa, Maharajganj , Raebareli District.

12] Shree Hans Vidhyapeeth at Village Bawanbujurg Balla, Maharajganj, Raebareli District.

13] Adarsh Baburam Junior High School at  Village Naranpur Akodiya,Unchahar, Mustafabad Raebareli  District.

14] Samrat Ashok Shikhaniketan at Village Sabaiya Purbaar,Unchahar, Mustafabad, Raebareli District.

15] Seema Public School at Village Bhamori, Sardhana, Meerut District.

16] Cambridge Public School at Village Doulatpur, Sardhana, Meerut District.

Biotoilet installation work is carried out by  Mechwat Technologies Pvt. Ltd. on behalf of MCX India Ltd.  Biotoilet installation in school created awareness in rural areas about sewage water treatment and utilization for irrigation purpose.  Biotoilet treated water utilization for irrigation promote the organic farming and nutrient water stability in  agriculture land.

Introduction of BioToilet

Bio-Toilets are a super structure of toilet with anaerobic biodegradation of  organic waste by unique microbial consortium  and works at a wide temperature range.  Organic solid waste convert to Gases Like Methane, Carbon Dioxide and Digested organic nutrient contain residual water which will be further utilize for agriculture propose or else treated further for secondary treatment known as Reed Bed System.

<img aria-describedby=

” width=”692″ height=”449″>                                                                                            BioToilet Model



Main Objective of Biotoilet Application for Human Waste Management Are :

  • No Energy Dependence.
  • Eliminate the maintenance of soak pit work & discharge of sewage waste.
  • Prevent the soli erosion and increase the ground water stability by eliminating the sulphate gases generation and water utilization for gardening/irrigation.
  • To promote the organic technology for waste utilization

Salient Future of  Biotoilet :

  • Disposes human waste in a 100% eco-friendly manner.
  • Continuous biological process which leads to maintenance free of sewage treatment process.
  • Does not require any septic tank or sewage collection facility.
  • Existing septic tank can be replace by Bio-digester in existing public & domestic toilets.
  • Routing chemical do not harm the system.
  • Independent on the limited and costly conventional energy resources.

Bio-Culture Configuration :

Bio-culture additives are Feeding micro-organisms(e.g. bacteria) and macro-organisms(e.g. plants & animals). Its extract of Ascophyllum nodosum  which one of the most nutrient rich vegetables on the planet containing life sustaining elements like organic iodine and organic germanium plus complex compounds like oligo sachharides and poly uronica acids-in additional  full range of vitamins, minerals and trace elements at levels way above those  of any land plants.

Advantages:

  1. Bio-Availability : Nutrients additives are chelated, colloidal, optimally balanced and easily absorbed.
  2. Bio-Activity : These additives are natural and superior bacterial culture media, restoring microbiological life too organism and eco-systems. When bacterial culture is exposed to nutrients, bacteria begin to free feed & thrive , producing a host of enzymes which then continue feeding and speeding biological processes. This bacterial enzyme activity  supports and protects life in complex and profound ways. Bio-Culture works with naturally  occurring , conventional organisms, aerobic and anaerobic. These additives are true pro-biotics, dramatically improving digestion efficiencies and decomposition rates through the entire digestion/decomposition process – completing these processes while eliminating odours with biological ion exchange capacity.
  3. Protecting organisms – Naturally occurring alginates + trace elements protect organisms from environmental toxin-including protecting the health of the sensitive, beneficial families of bacterial with living systems. Ascopyllum nodosum is proven to  sequester heavy metals without further processing or release. Our product actually blocks heavy metals  in soils and waste product preventing  assimilation plants and animals.



Design Qualification of  Biotoilet for Multi Commodity Exchange of India Ltd.

S.No. Features Detail
1 Size (W x D x H) in Ft. [(3.5 x 3.5 x 7.5)Ft. x  3 Nos
2 Material to be used 12mm  PVC Foam Sheet
3 Thickness of Sheet 12mm PVC Foam Board
4 Moulded /Angle Channel based ? Angle Channel based
5 Biotoilet Basement 650 mm Civil Platform with Two Step Stair and Tiles Work from ground level
6 Biotoilet Ceiling 12 mm Solid PVC Foam Sheet
7 Side Wall of Biotoilet Structure 12 mm Solid PVC Foam Sheet with MS Square Pipe Fittings Work; Water proofing silicon fittings
8 Electric work scope One Lamp; Switch Board for Exhaust fan & Lamp in each block
9 Ventilation System  250mm Crompton Exhaust Fan in each block
10 Door Size : [2.5  x 6.5 ] ft ; MOC :  24 mm PVC Foam Board ; Density – 0.58
11 Door  kit SS Aldrop, Stopper , Handle and SS Mizagra included in each block.
12 Water Line Piping UPVC Piping with water tape in each block included with piping connection of water tank
13 Drain Line Piping PVC Piping drain work for each block and connection with biodigester.
14 Water Tank Triple Layer HDPE 500 Liter Tank Included at each location
15 Water Tank Stand [ 35 x 35 x 5 ] mm MS Angle Stand having [ 4 x 4 x 6] Ft Height at each location
16 Wash Basin 1 Nos
17 Water Tap PVC Polo Tap
18 Door 25 mm Square pipe along with 15 mm PVC Door & PVC Angle Frame.
19 Roofing 25 MM MS Square Pipe frame along with both Side 12mm sheet fitting
20 Water Tank Client’s Scope
21 Piping Work UPVC & PVC Piping Work
22 Biodigester Capacity will be given as per given location detail on mail; 15mm  Thick HDPE  Biodigester/Civil Construction.
23 Bioculture 3 Liter to 5 Liter
24 Mirror Not Include
25 Warranty We ensure five year warranty for manufacturing defect of material and  operation of Biodigester
26 Installation Period 7 Days required for installation completion work for each location



Detail Photographs of  Biotoilet Installed under CSR Activity of MCX India Ltd are as :

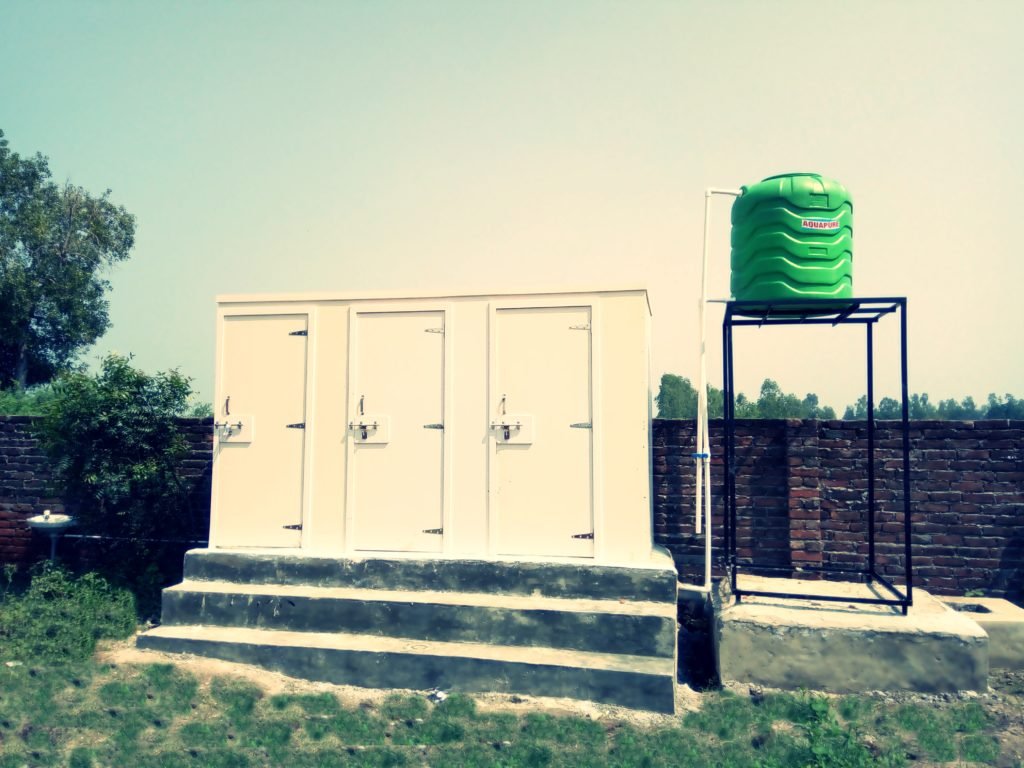

1] Siddheshwar Sikkhaniketan at Village Birnava, Deeh, Nasirabad, Raebareli District.

Bio Toilet

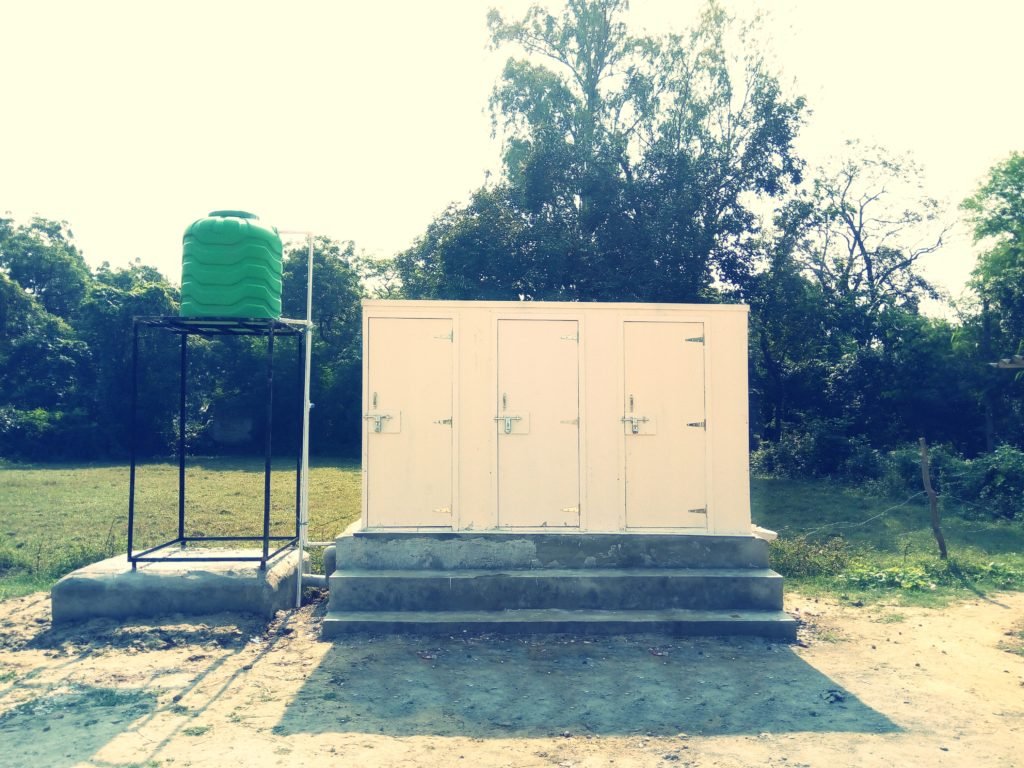

2] Shree Mohan Smarak Public School at Village Peedhi, Deeh, Nasirabad, Raebareli District.

Bio Toilet

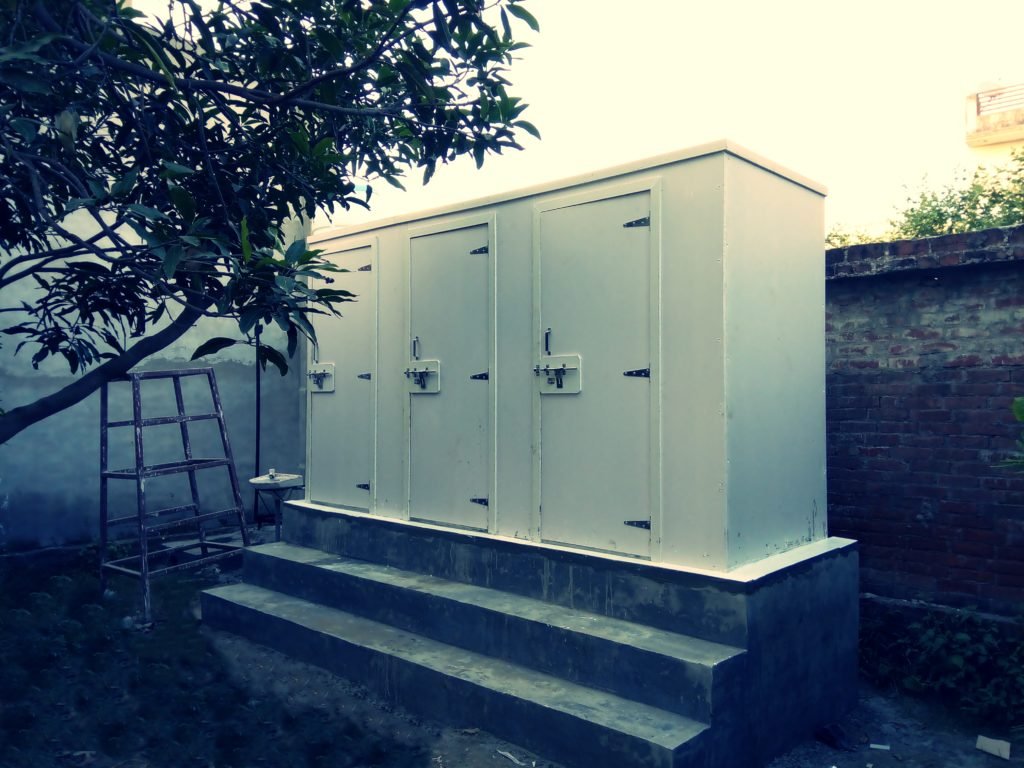

3] Pandit Dinanath Mishra Inter College at Village Lalganj, Lalganj,  Raebareli District.

Bio Toilet

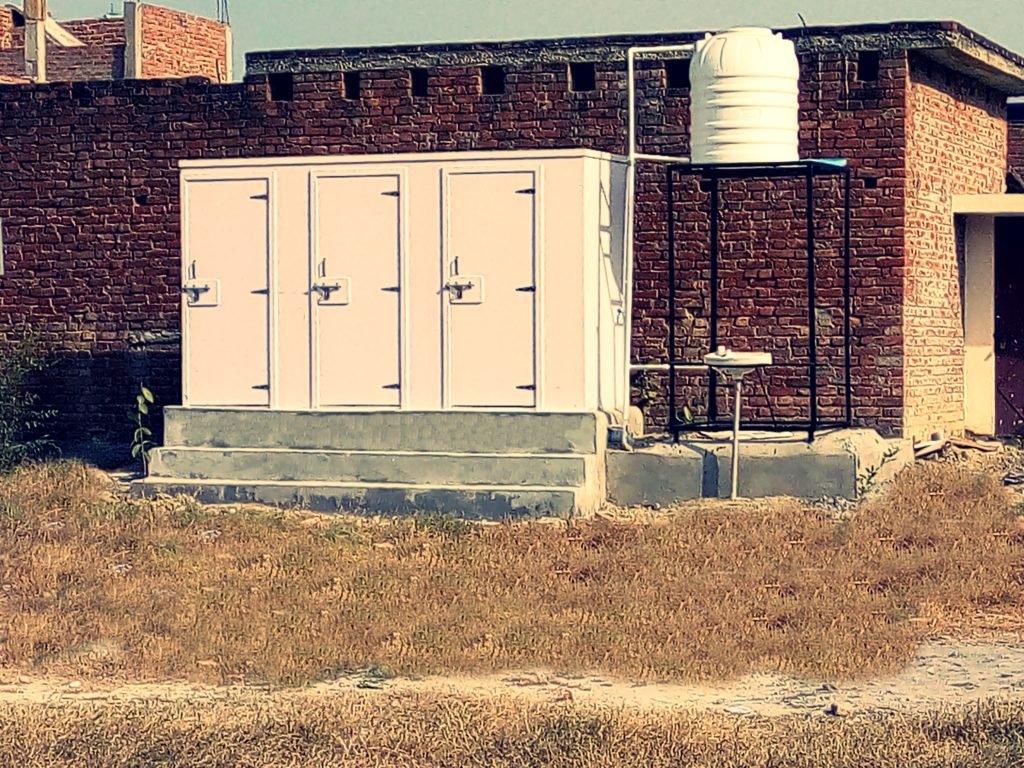

4] Srimati Ramadevi Kumari Sobhadevi at Village Lalganj, Lalganj, Raebareli District.

Bio Toilet

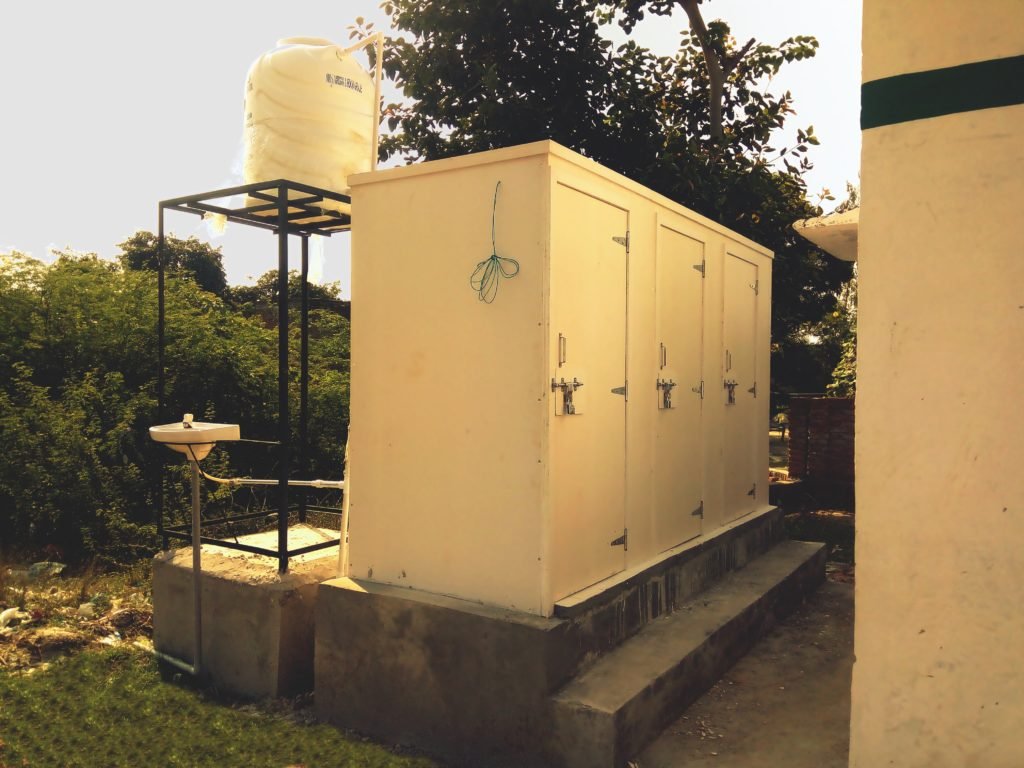

5] Primary School Kurha at Village Kurha, Chhatoh, Jais, Raebareli District.

Bio Toilet

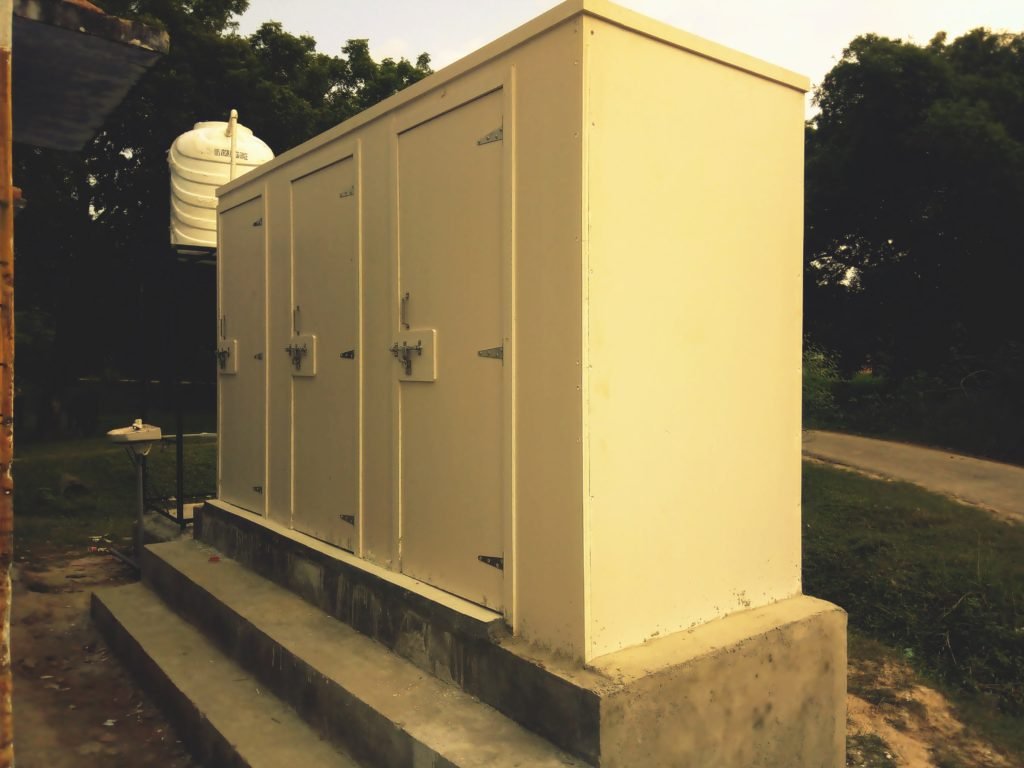

6] Primary School Kanta at Village Kanta, Chhatoh, Jais, Raebareli District.

Bio Toilet

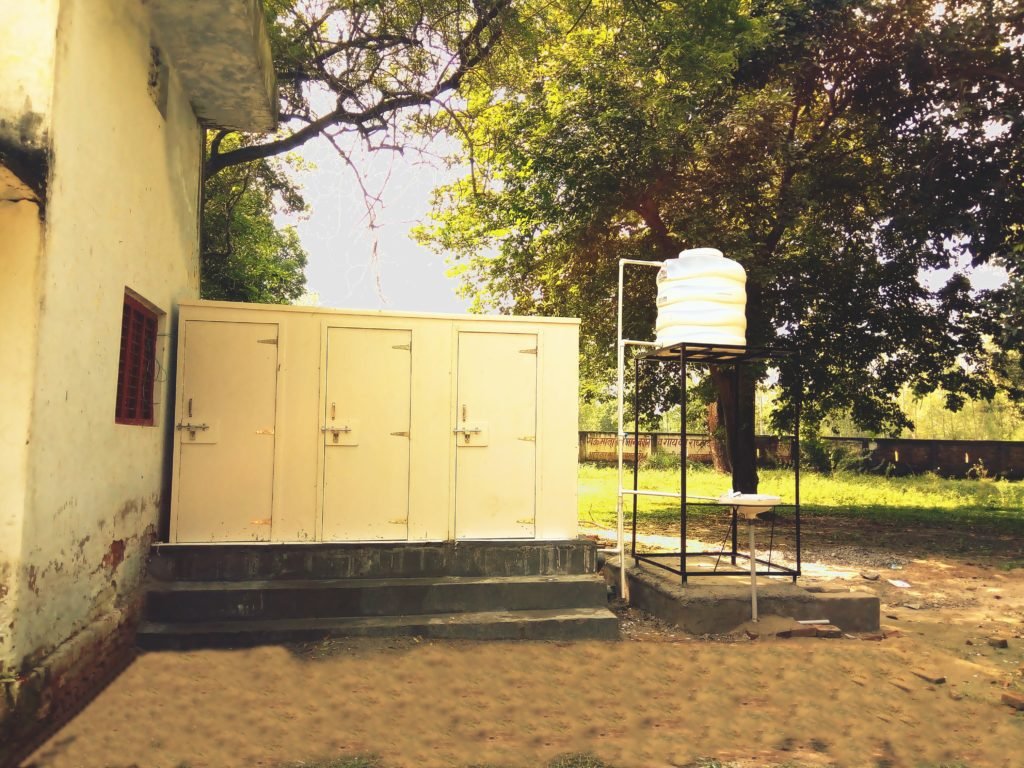

7] Jharkhandeswar Vidyapeeth at Village Matka, Salon, Raebareli District.

Bio Toilet

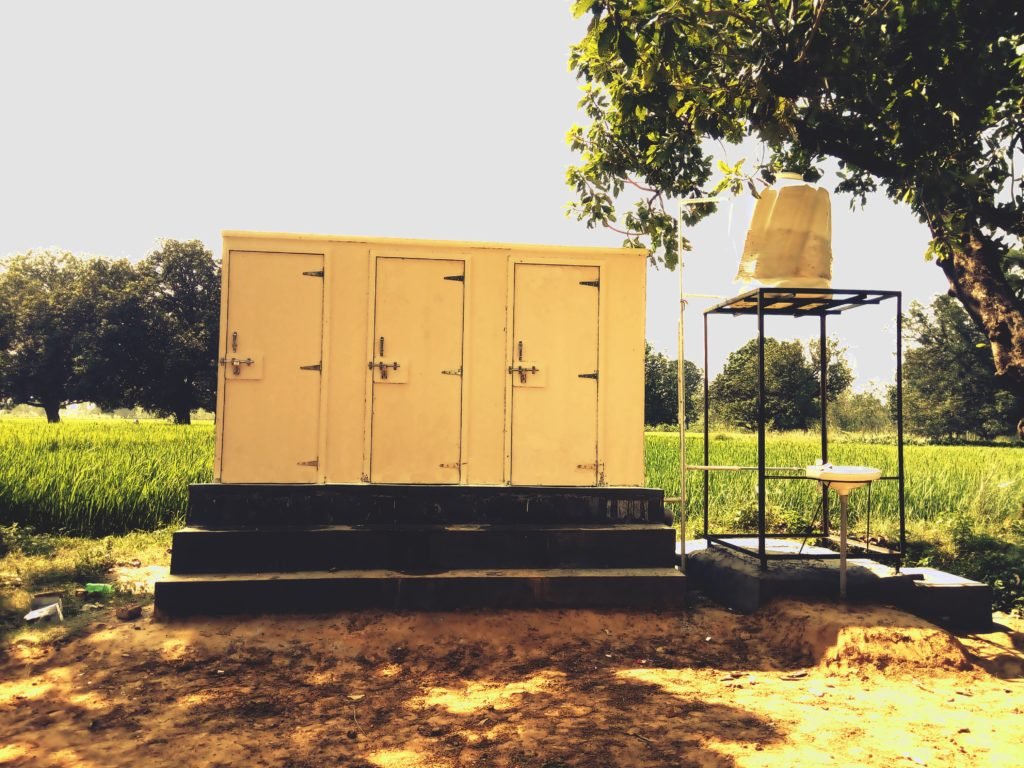

8]  Swami Vivekanand Inter College at Village Suchi, Salon, Raebareli District.

Bio Toilet

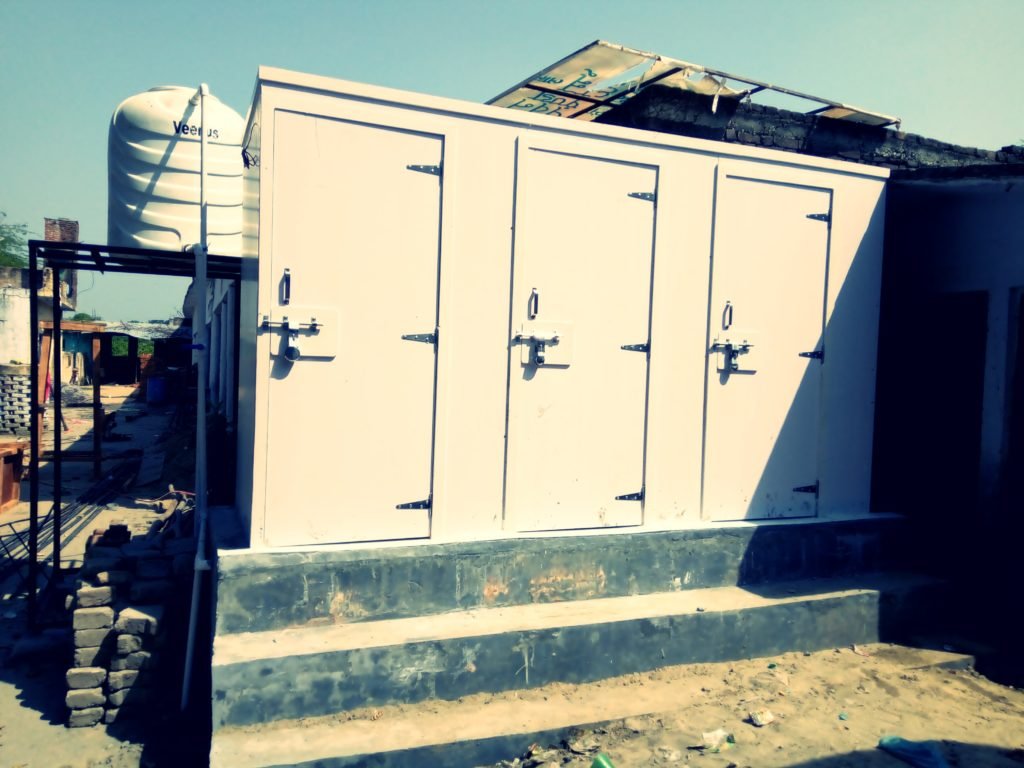

9] Radhakrishna Baal Vidya Mandir at Village Chauhatta, Dalmau, Raebareli District.

Bio Toilet

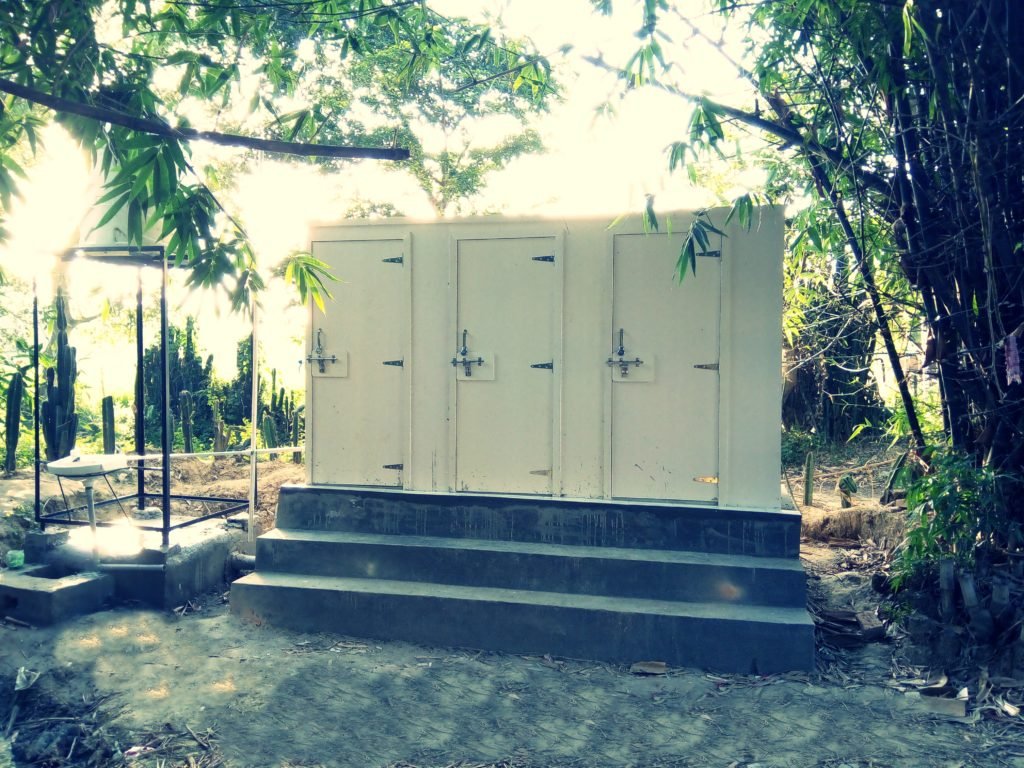

10] Naveen Vidya Mandir at Village Kusuwapur,Dalmau Raebareli District.

Bio Toilet

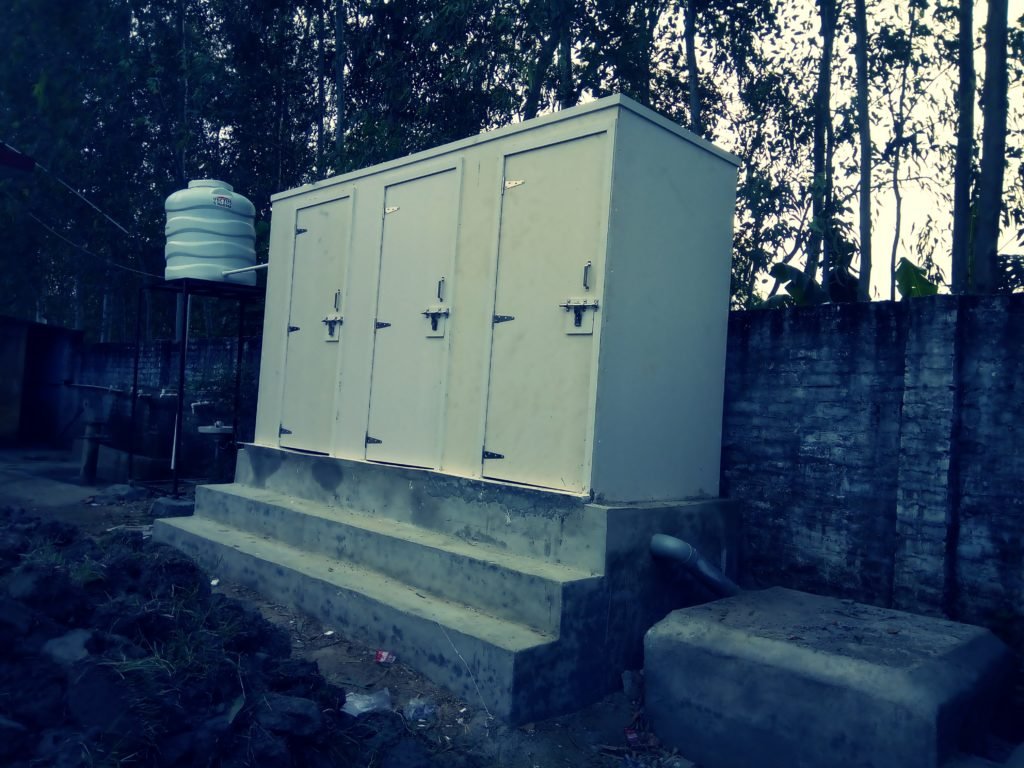

11] Gyan Vidhya Mandir at Village Thulwasa, Maharajganj , Raebareli District.

Bio Toilet

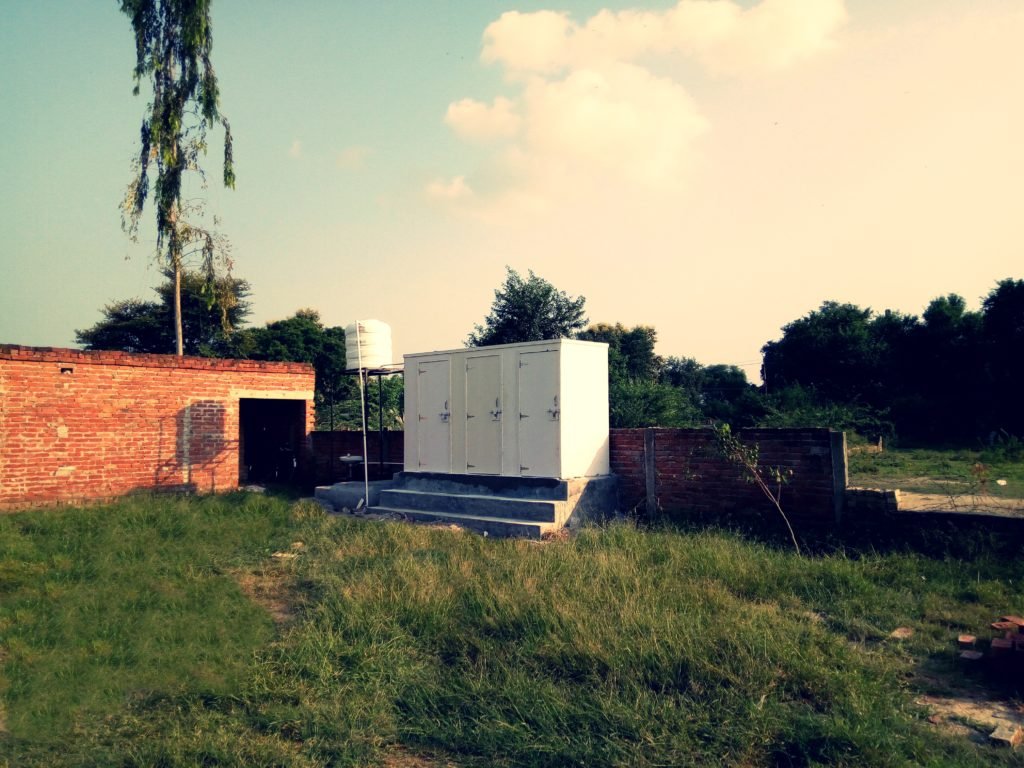

12] Shree Hans Vidhyapeeth at Village Bawanbujurg Balla, Maharajganj, Raebareli District.

Bio Toilet

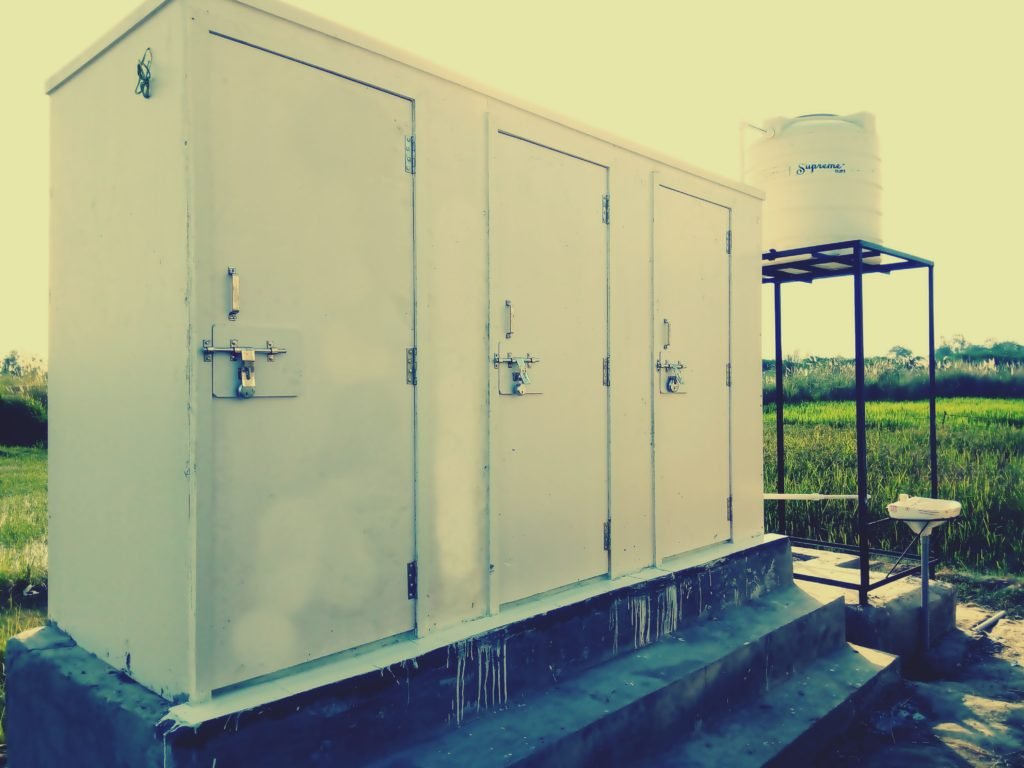

13] Adarsh Baburam Junior High School at  Village Naranpur Akodiya,Unchahar, Mustafabad Raebareli  District.

Bio Toilet

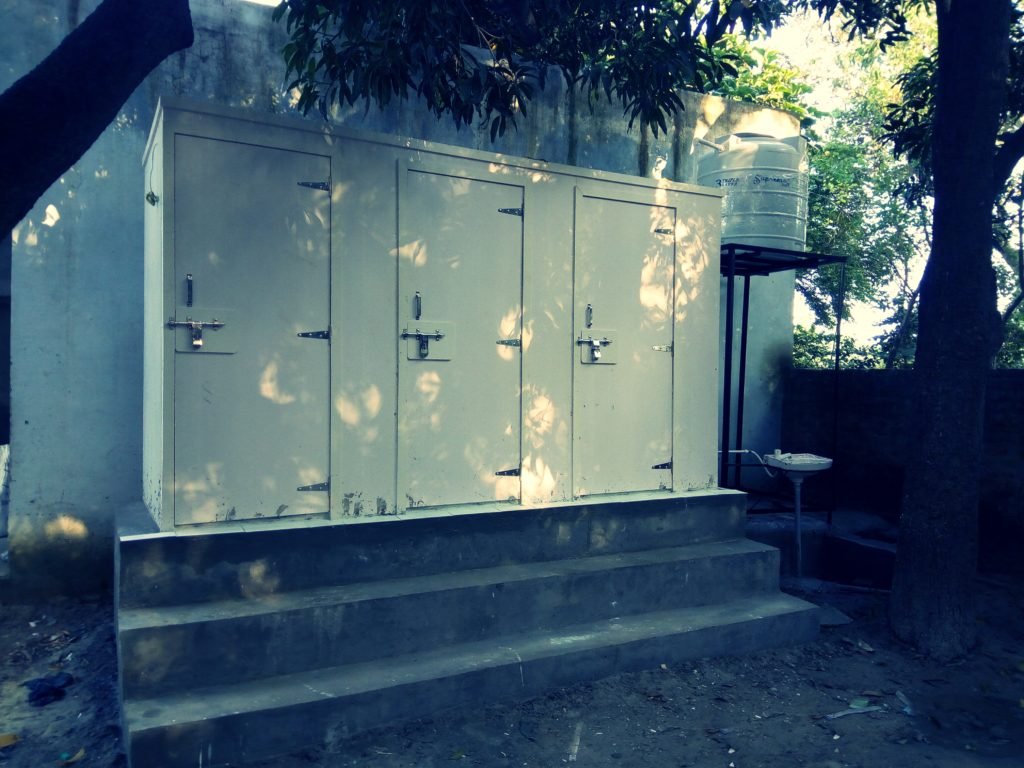

14] Samrat Ashok Shikhaniketan at Village Sabaiya Purbaar,Unchahar, Mustafabad, Raebareli District.

Bio Toilet

15] Seema Public School at Village Bhamori, Sardhana, Meerut District.

Bio Toilet

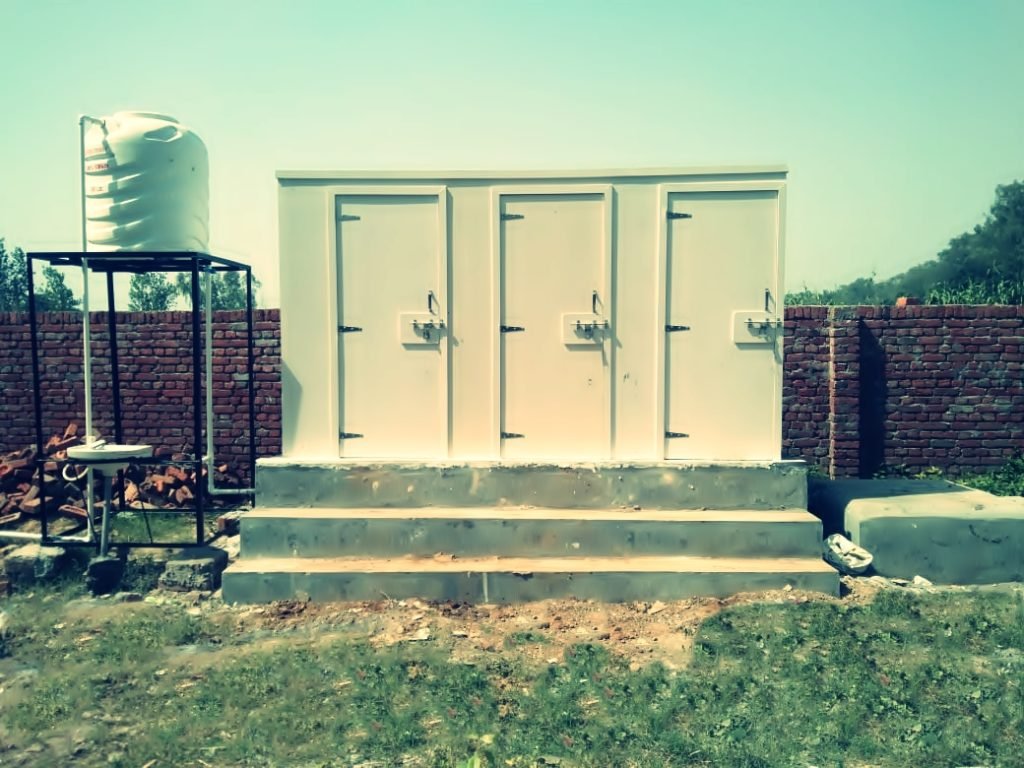

16] Cambridge Public School at Village Doulatpur, Sardhana, Meerut District.

Bio Toilet
