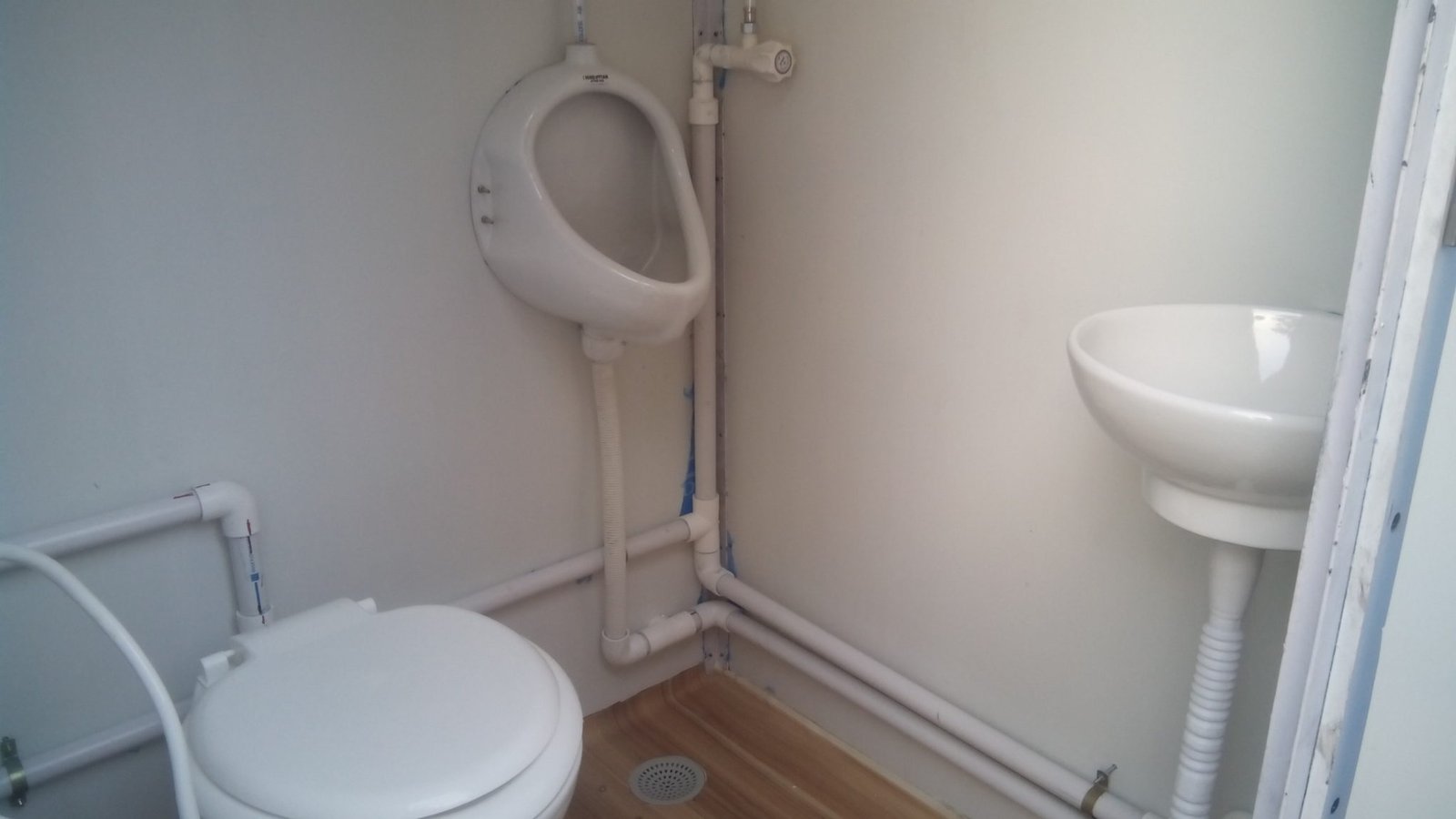

Mechwat has installed Portable Biotoilet for HPCL [Hindustan Petroleum Corporation Limited] at Jaipur Airport, Rajasthan.

Detail Description of Portable Biotoilet are as :

S.No.	Features	Detail
1	Size (W x D x H) in Ft.	[(4 x 4 x 7)Ft.
2	Material to be used	12mm & 15 mm Solid PVC Foam Sheet
3	Thickness of Sheet	12mm & 15 mm
4	Moulded /Angle Channel based ?	Angle Channel based
5	Urinal Type & Make	Wall urinal, Hindustan make (Ceramic)
6	IWC MOC, Make	Western/Indian/CERA MakeSS304
7	Flush Valve	CP; Ashirvad make
8	Electric work scope	One LED lamp & switch board for exhaust fan & lamp
9	Wash Basin	Included in each unit 9 inch size; Priya Make
10	Bio-digester Capacity	1200 Liter
11	Maximum user for Biodigester	25 People per Day
12	Material of Bio-digester	FRP; 10 mm thickness
13	Ventilation System	10 Inch Ventilation System ; Crompton make-3 set
14	Bio-inoculum	5 Kg
15	Bio-media	Included in Biodigester
16	Health Faucet	MOC : CP
17	Two Way Bibcock	SS ; Ashirwad Make
18	Door	25 mm Square pipe along with 15 mm PVC Door & PVC Angle Frame.
19	Roofing	25 MM MS Square Pipe frame along with both Side 12mm sheet fitting
20	Water Tank& Stand	Client’s Scope
21	Piping Work	UPVC & PVC Piping Work
22	Installation work	Biotoilet will be mounted on 100 mm PCC Platform
