LED Unipole Structure Fabrication and Installation : Vodafone Idea Limited

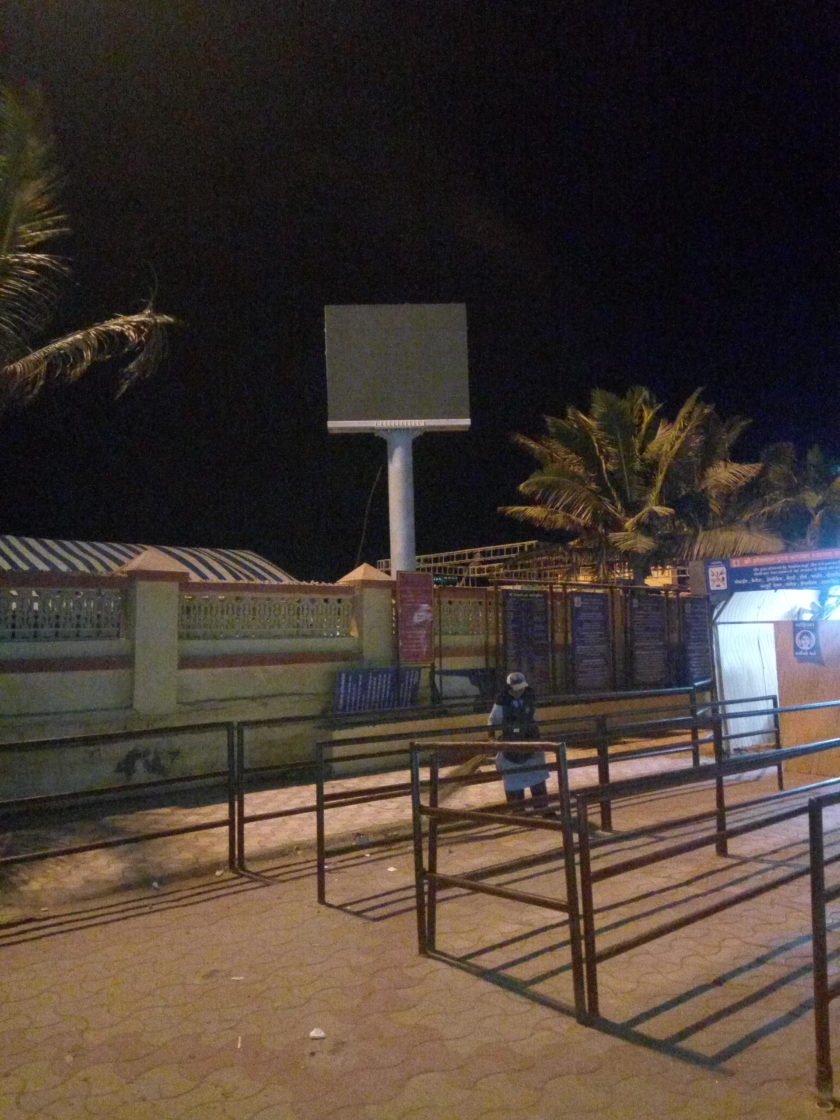

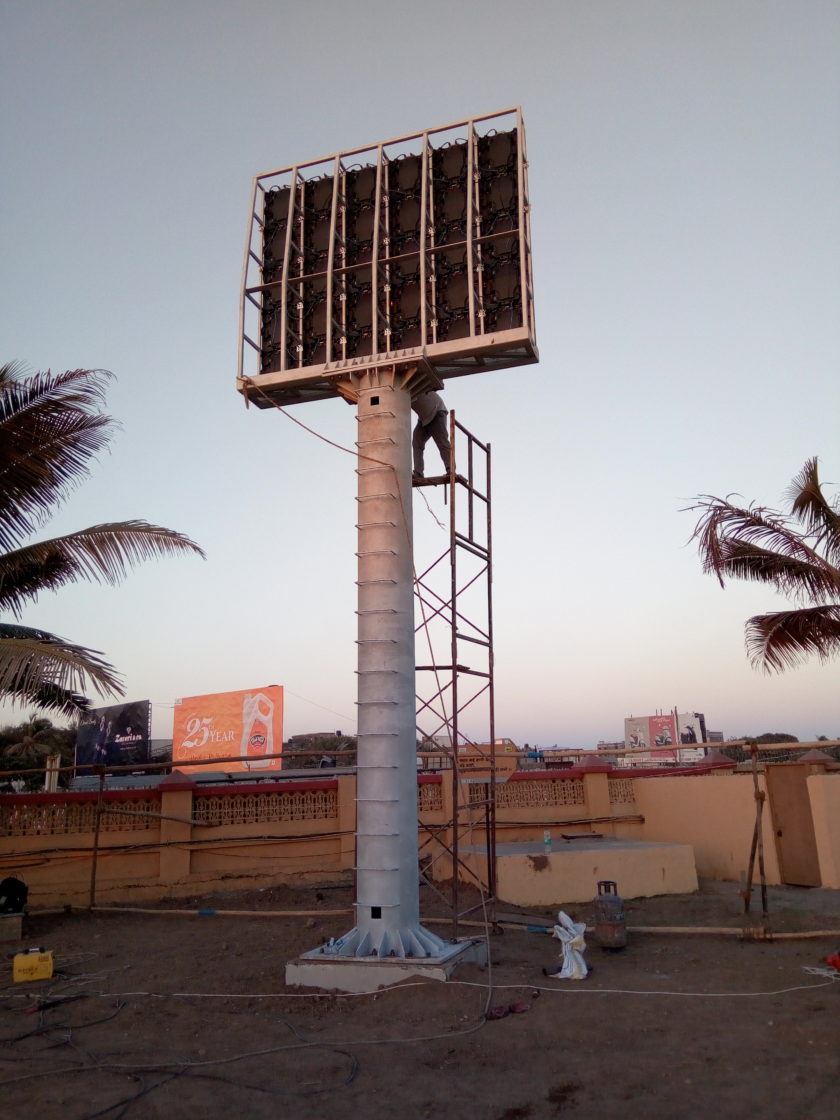

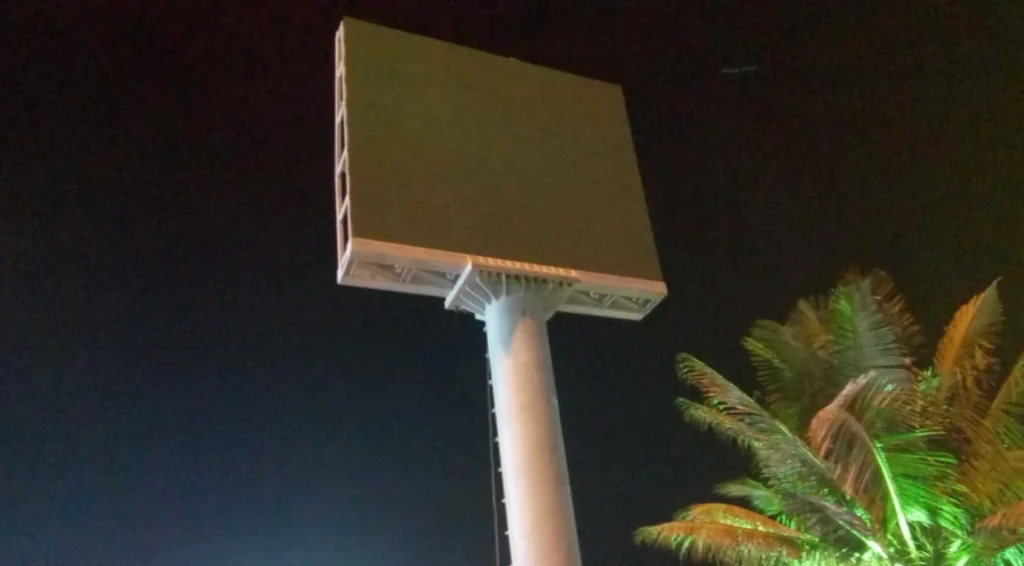

Vodafone Idea Limited are contributing in SIP[Swach Iconic Place] activity  under  the CSR [Corporate Social  Responsibility] project activity.   Vodafone Idea Limited has installed the   120  Sq.ft  LED Unipole Structure Hoarding at Shree Somnath Temple, Somnath, Gujarat.  Mechwat had carried out the fabrication and installation work  of  LED Unipole Structure.

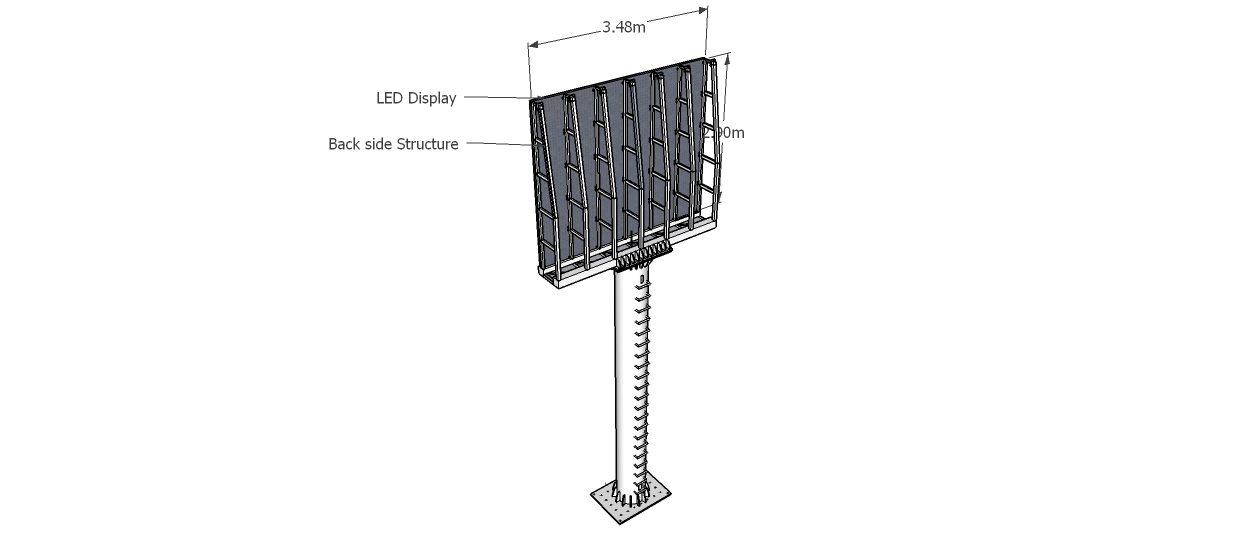

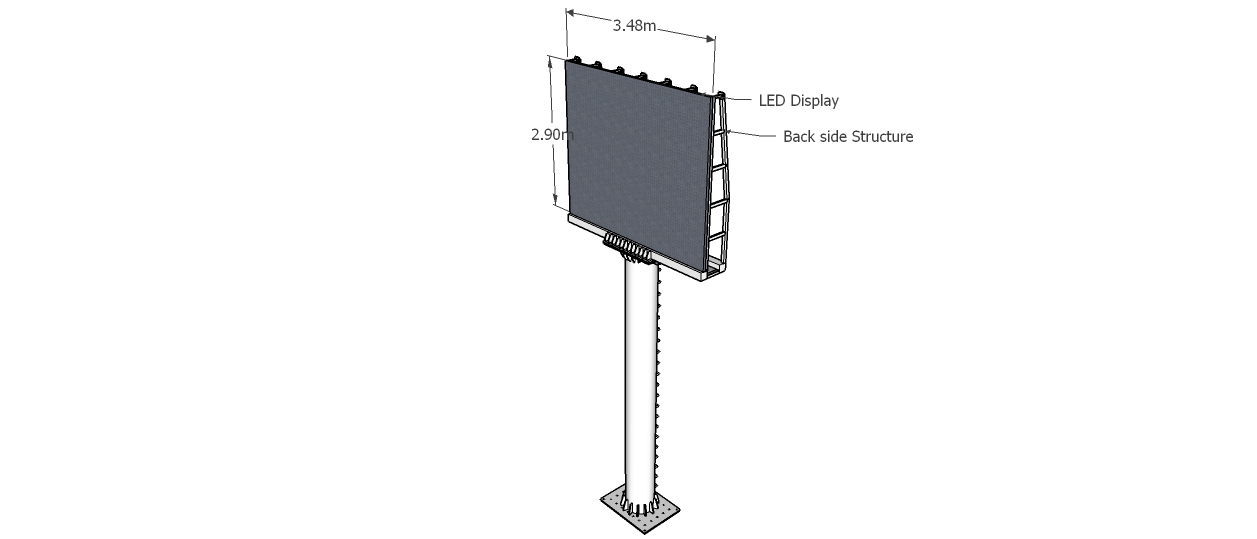

Detail Specification of LED Unipole Hoarding Structure are as :

Sr. No. Material Size MOC Quantity Unit
1 Foundation Plate [30 x 900 x 900] mm GI 2 Nos.
2 Foundation Bolt 25 mm dia. X 150 mm GI 80 Nos.
3 GI Thread Bar 25 mm dia. X 1500 mm GI 20 Nos.
4 GI Triangle Plate [10x50x100x250]mm GI 20 Nos.
5 GI Shell 10 mm x 600 mm dia. X 8000 mm GI 1 Nos.
6 GI Plate For LED Mounting 30 mm x 1200 mmx 800 mm GI 2 Nos.
7 Structure Bolt 25 mm dia. X 125 mm GI 40 Nos.
8 Support for top plate triangle [10 x 300 x 100 x 200] mm GI 6 Nos.
9 Support for top plate triangle [ 10 x 150 x 100 x 50 ]mm GI 8 Nos.
10 Square pipe [10 x 150 x 4880] mm GI 1 Nos.
11 Square pipe [10 x 100 x 4880] mm GI 1 Nos.
12 Square pipe [5 x 50 x 50 x 350] mm GI 9 Nos.
13 Square pipe [ 5 x 50 x 50 x 705 ]mm GI 8 Nos.
14 GI Plate [ 3 x 400 x 4800 ]mm GI 1 Nos.
15 Triangle Plate [10 x 300 x 150 x 50]mm GI 9 Nos.
16 Angle [8 x 65 x 65 x  4880] mm GI 4 Nos.
17 Square pipe [5 x 80 x 40 x 1830 ] mm GI 9 Nos.
18 Square pipe [5 x 80 x 40  x1930] mm GI 9 Nos.
19 Square pipe [5 x 80 x 40 x 166] mm GI 9 Nos.
20 Square pipe [ 5 x 80 x 40 x 333 ] mm GI 9 Nos.
21 Cement for civil foundation 50kg/bag-ultratech Civil 45 Bag
22 Concrete 20 mm Civil 85 Sq.ft
23 Sand Civil 45 Sq.ft
24 Structural steel M25 MS 900 Kg
25 Excavation Civil 12 M3
26 Paint NC Coating Silver Paint 142 Sq.ft
27 Civil labor Labour 200 Sq.ft
28 Installation work 1 Set
29 Transportation 1 Set
