Portable First Aid  Medical Dispensary  Office Centre Manufacturing

Mechwat is leading manufacturer of Prefab Portable First Aid Medical Dispensary Office Centre as per custom rules and regulation various industrial sector likes Mines, Ports, Power, Railway, Metro, medical clinic, road toll plaza, Rural and urban health centre, Construction, CSR Projects,etc.

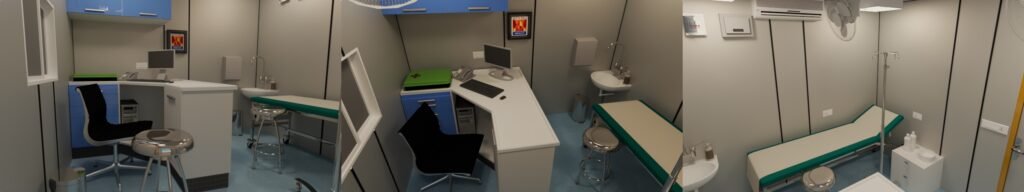

Portable First Aid Dispensary Medical Office Centre

General Description of Portable First Dispensary Medical Office Centre are as :

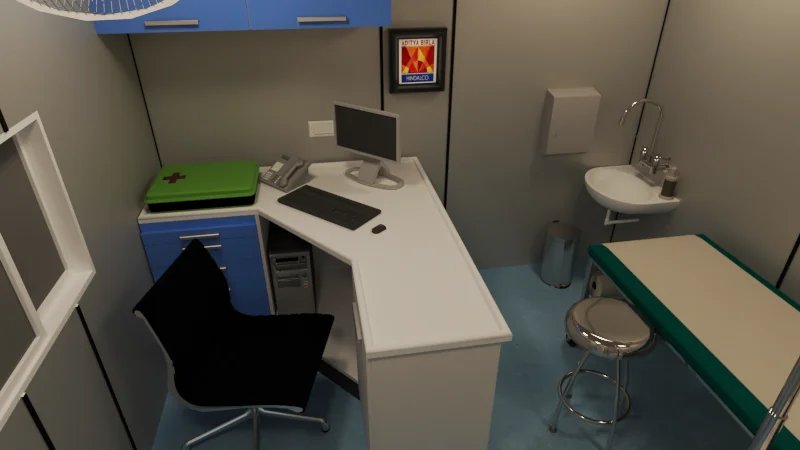

Prefab Portable First Aid Dispensary Medical Office Centre Manufacturing
Sr. NoFeaturesDetail
1SizeAs per custom standard of respective industry
2Base FrameThe base frame would be made of a pressed mild steel channel section. The main structural element will be 150 mm x 75 mm x 5 mm C Channel section and the cross member should be of 100 mm x 50 mm x 5 mm C channel section
3Side and End Walls The side and end frame made out of pressed suitable profiles of sufficient strength. exterior wall made up of 1.6 mm CRC MS Specially Corrugated sheet. Panels will be vertically corrugated and will be continuously welded to the top side and base structure so as to offer better strength to weight ratio. all gaps to be sealed at edges and at the seam, bottom, etc to prevent ingress of moisture.
4Insulation50mm thick glass wool insulation would be used for walls and 50 mm thick insulation material to be provided for roof and side walls
5Inner PanelingThe interior will be aesthetically finished so as to give custom-built appearance with extremely high-quality workmanship. All vertically and horizontal corners should be neatly and smoothly finished. The paneling of the sidewall and roof will be 4 mm ACP panel.
6Flooring SystemsOn the bottom frame 18 mm thick composite cement sheet will be fixed by means of self-tapping screw. 1.8 mm antibacterial pvc vinyl flooring will be fixed on the cement sheet. For sanitation block, On the cement sheet, Anti slippery ceramic tiles will be fitted with proper drainage arrangemet.
7RoofSelf-draining type roof will be made out of 20 gauge thick ms sheet, adequate roof bows are to be provided. Roof will be adequately cambered for draining of rain water. Interior paneling would be done in 3 mm thick ACP sheet with adequate insulation.
8WindowsAluminum Windows 2.5′ ft. x 3′ ft sliding-type will be provided made of aluminum profile section having 4 mm thick clear vision glasses. All windows /doors to have external weather shed. window bard and mosquito net included.
9DoorThe size of the door will be of 6.5′ height x 3’3” width. The Door will be of external opening type made out of the same material as wall panels with door closing unit. The construction of the door would be double skin steel construction with 50 mm thick glass wool insulation. The door interior will be finished with the same material matching with that of the medical office interior. the door will be provided with locking arrangements with separate handles on both sides of the door.
10Electrical SystemThe first aid medical dispensary office center will be provided with electrical wiring suitable for 250 volt. 50 Hz single-phase ac power supply. all electrical wiring would be concealed. bulkhead and LED light will be provided as required. Suitable Copper cables will be used for lighting circuits. The cables used will be of 4 sq. mm and 2.5 mm ISI mark and concealed in PVC conduits insulated copper wire will be used for wiring to be done in PVC conduit with small size distribution board with mcb protection and to separate with main supply. Light fittings included LED lights, ceiling fans as per the electrical plan will be provided. Internal switchboard and prewiring for air conditioners will be provided. All plugs & sockets will be as per your country’s Standard. Electrical wiring and fittings will be done as per your country’s standards.
11Painting All components will be primed. Quoted with zinc chromate primer. The external surfaces will be initially primed with epoxy primer. And finally, Fine quality decorative epoxy or PU paint will be applied in the final stage.
12Accessories & Equipment1] Semi Flower bed
2] IV Pole
3] Key Cabinet 2.5′ x 2′ ft
4] Wash basin set with water mixer
5] Work station table- L type [ 4′ x 2.5′ x 2.5′ & 2′ x 2.5′ x2.5′]ft
6] Hand Sanitizer kit at door [ SS-1 Liter]
7] Screen for check up [64 sq.ft]
8] Cabinet for drugs[ 4′ x 1.5′ x 1.8′] ft
9] White board [ 1m x 1m]
10] Dustbin-2 nos [ss]
11] First aid kit
12] SS Stool
13] Office Chair
14] Paper Towel Dispenser
Description of Portable First Aid Dispensary Medical Office Centre
