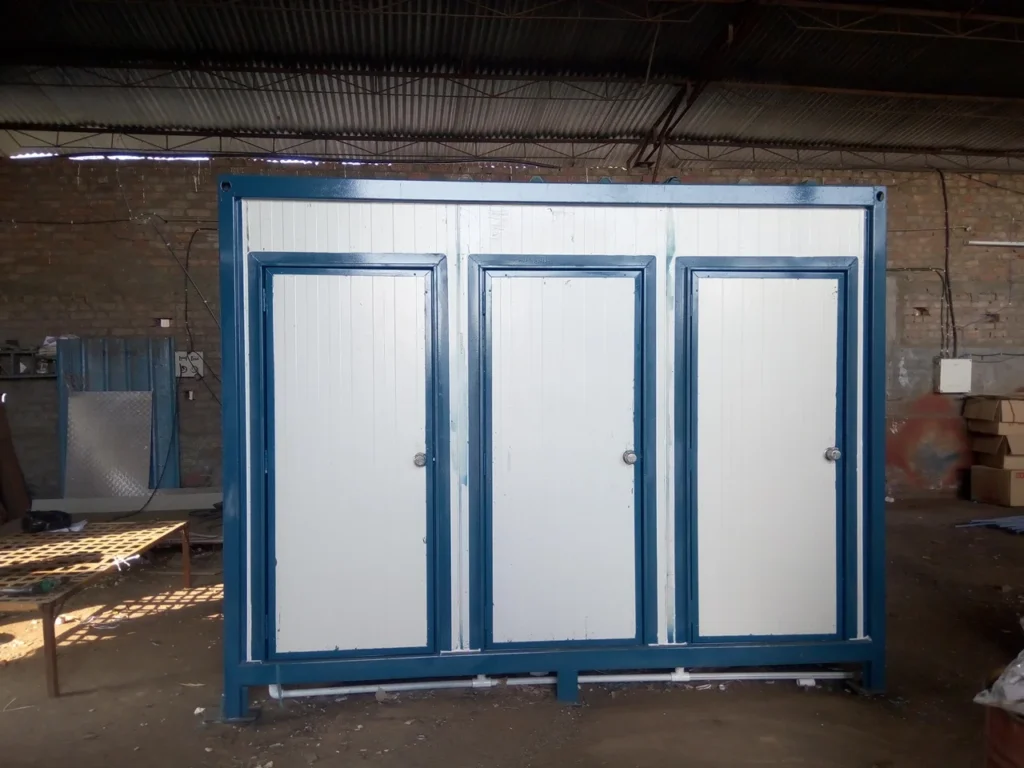

Mechwar Are manufacturers of Prefabricated Sandwich puff panel toilets in a wide variety of ranges. Quality and material standards will depend on clients’ requirements for various consumer industries like a Construction site, Road Project, Metro Project, Coal Mines Industries, Power Project Site, Labour Colony, Exhibition Site, etc.
| S.No. | Features | Detail |
| 1 | Size (W x D x H) in Ft. | [(3.5 x 3.5 x 7)Ft. x 3 nos |
| 2 | Weight of Structure | 650 Kg |
| 3 | Material to be used | 50 mm of Puff coated 1 mm GI Sandwich Puff Panel Sheet |
| 4 | Thickness of Sheet | 30 mm |
| 5 | Structure Detail | Mild steel build-up section for beam, columns, and staircase. It can be made of RHS/ SHS/HSS or in combination can be used to raise the structure. 3MM MS Pressed section made up as per the size of puf panel and main outer structure made of 3 mm x100 mm Sq. pipe.
|
| 6 | Urinal Type & Make | – |
| 7 | IWC MOC, Make | Western/Indian/Sanitation or Equivalent |
| 8 | Flush Valve / Flush Tank | CP; Ashirvad make/Ceramic make |
| 9 | Electric work scope | One LED lamp & switchboard for exhaust fan & lamp |
| 10 | Wash Basin | Included in each unit 9 inch size; Priya/Bell Minto/sanitation Make |
| 11 | Health Faucet | MOC : CP |
| 12 | Two Way Bibcock | SS; Mavig Make |
| 13 | Door | 25 mm Square pipe along with 15 mm PVC Door & PVC Angle Frame. |
| 14 | Roofing | 25 MM MS Square Pipe frame along with both Side 12mm sheet fitting |
| 15 | Water Tank& Stand | 500 Liter Water Stand available in Toilet Roof. |
| 16 | Piping Work | UPVC & PVC Piping Work |
| 17 | Installation work | Client’s scope: minimum height of 2 stairs to be maintained during mounting |
| 18 | Mirror | 1 Nos |
| 19 | Dispenser Box | 1 Nos |
| 20 | Flooring | 3 mm Aluminum Chequer Plate provided in flooring with waterproofing sealant packing |
| 21 | Exhaust Fan | Crompton make; 250 mm |
