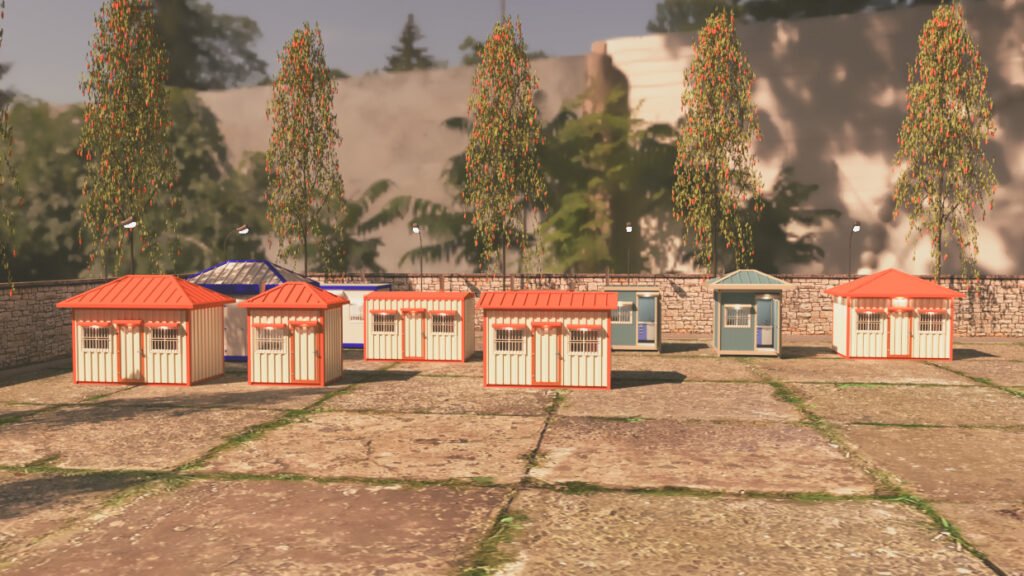

Mechwat is a leading manufacturer and supplier of prefab engineering products. Portable Kitchen Container Cabin manufactured by LGSF Technology, Flatpack system, Insulated Sandwich puf panel, and conventional steel wooden fabrication process. The kitchen is available in Portable, Flatpack, Mobile type and fixed on the precast civil foundation. Portable Kitchen best suited for Site project, Mining Industry, Road Project, Power Project Canteen, School Canteen, Govt. Canteen Food Project, Construction Project, Camping Getaways, Small farmhouse in a remote location, Dormitory house in tourist spot-remote location, accommodation office in a remote location, and CSR-NGO Project.
| Sr.No. | Feature | Detail |
| 1 | Size | 5 sq.meter-240 sq.meter |
| 2 | Structure | The Entire Structure is made of Steel equivalent to IS10748 or IS4923 |
| 3 | Foundation/Platform | Prefab Kitchen is available in Portable/Flatpack System which is installed on precast RCC block and Steel platform. Also, Prefab Kitchen install on RCC Civil Foundation/Precast civil Platform on a solid surface. |
| 4 | Walls & Ceiling | Walls & Ceiling are 50 mm thick PPGI Sandwich Wall Panel sheet equivalent to IS 11447 or IS513 or Equivalent |
| 5 | Roofing & Accessories | The roof of the shell will be manufactured from 50 mm sandwich roof panel sheet equivalent to IS11447. For Lightweight Structure, Roof is cladded with Powder Coated Steel Roof Panel. Water harvesting accessories such as gable section, closing eave, piping, clamping joint, etc fixed along with roofing panel |
| 6 | Internal & External Flooring | The Floor is fixed with fiber cement boards. After which, Laminate /Aluminum Chequered plate or vitrified tiles are fixed as per needs. |
| 7 | Doors & Windows | Window and Door would be of Standard Size with all the necessary Accessories |
| 8 | Plumbing | The kitchen comes complete with all internal pipelines of CPVC or UPVC Along with Sanitary fixtures Such as Washbasin, Dispenser, etc. |
| 9 | Electrical Fittings | All the electrical fittings come with standard make such as Switches, Sockets, Fan, LED Lights, etc. Provision of Electronic items such as TV, AC, Geyser and other electrical item provided |
| 10 | Furniture | All the furniture for the kitchen are available at an extra cost |
| 11 | Weather Proofing | All the joints and sections weatherproofed by watertight silicone sealant and Rubber |
