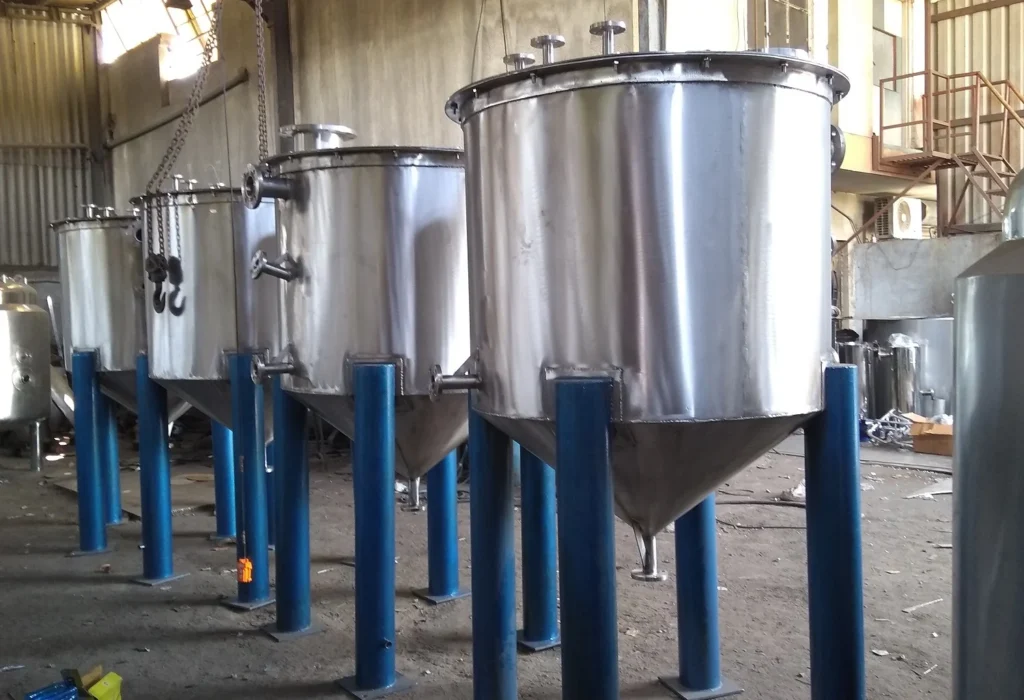

SS Cone Bottom Tank Manufacturer In India

Mechwat Technologies Pvt Ltd. are SS Cone Bottom Tank manufacturer in Ahmedabad, Gujarat, India.

We had designed, manufactured and supplied SS Cone Bottom Lime Storage Tank At- Kadi, Ahmedabad, India to Adani Wilmar Limited for Edible Oil Refinery.

We are also engaged with various industries for providing solution for storage of liquid gases and solids (Industrial Chemicals, Industrial Solvents, Water, Syrup, Oil, Sugar, Powder, been and etc.)



Title: Stainless Steel 304 Grade Cone Bottom Lime Storage Tank

Category: High purity stainless steel processing equipment

Description of SS Lime Storage Tank: SS304 Vertical Oriented Heavy Duty Lime Solution Storage Tank-1200L Capacity with Agitator Provision.

Type of Tank: Heavy Duty SS Cone Bottom Lime Storage Tank

Capacity: 1.0KL Stainless Steel Lime Tank. (MECHWAT is also manufacturing vide range of Stainless Steel Chemicals Storage Tanks from 100 to 50,000 Liters.

M.O.C. of Stainless Steel Tank: AISI 304 (MECHWAT manufacturing various type Tanks for example AISI 304, AISI 316)

Surface Finish of Stainless Steel Tank: Internally mirror polished and externally mirror polished (But MECHWAT Providing customized surface finishing facility like Matt Finish, Mirror Finish, Brush Finish, 2B Finish, Powder Coating and etc.)

Insulation Type: NA (Client Scope- Optional- Nitrile Class “O” Insulation As well as Glasswool / Mineral Wool)

Cladding Type: NA (Client Scope- Optional- Aluminium 24 G Thickness As well as SS304 1.6 G Thickness)

Nozzles / Connections:

  • Manhole: 300 x 300mm Flange End without lead and handle (Application- For Agitator Inward / Outward)
  • Air Inlet Nozzle- 25mm Flange End Class 150
  • Lime Circulation Nozzle- 25mm Flange End Class 150
  • Water Inlet Nozzle- 25mm Flange End Class 150
  • Lime Inlet Nozzle- 200mm Flange End Class 150
  • Temperature Indicator Connection- 40mm Flange End Class 150
  • Outlet Nozzle- 40mm Flange End Class 150
  • Drain Connection Nozzle: NA
  • Overflow Connection Nozzle: 80mm Flange End Class 150
  • Extra Connection: 40mm Flange End Class 150 x 2Nos. (MECHWAT Is also providing customize nozzle as per client’s requirement)

Mounting Stand Support: Made from Mild steel Heavy Duty C Class Pipe with Dark Blue Painted.

Lifting Lugs / Hooks: 150 x 60mm x 16mm Thickness

Design Code: cGMP (We are also proving tanks as per ASME, IS, UL, As well as BS Standard)

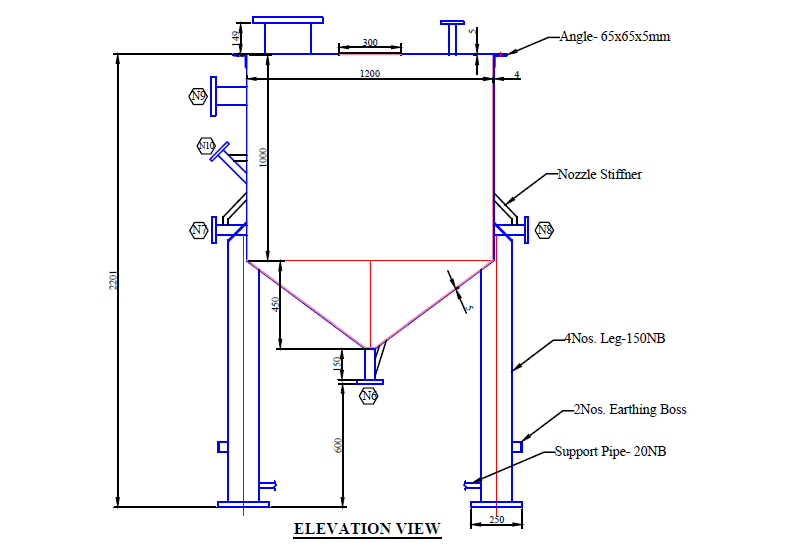

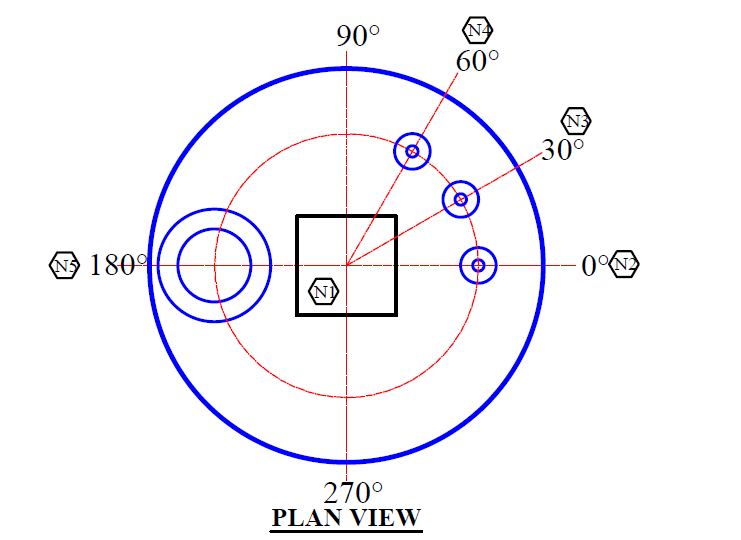

General Arrangement Drawing:
