Mechwat Technologies Pvt Ltd. are Stainless Steel Mixing Tank Exporter and manufacturer in Ahmedabad, Gujarat, India.

We had designed, manufactured and Exported Stainless Steel Mixing Tank Export At- Doha, Qatar for Chemical Manufacturing Plant of Our Client.

We are also engaged with various industries for providing solution for blending and mixing of Liquids. (i.e. Chemical Blending, Chemical Mixing, as well as Chemical Reaction)

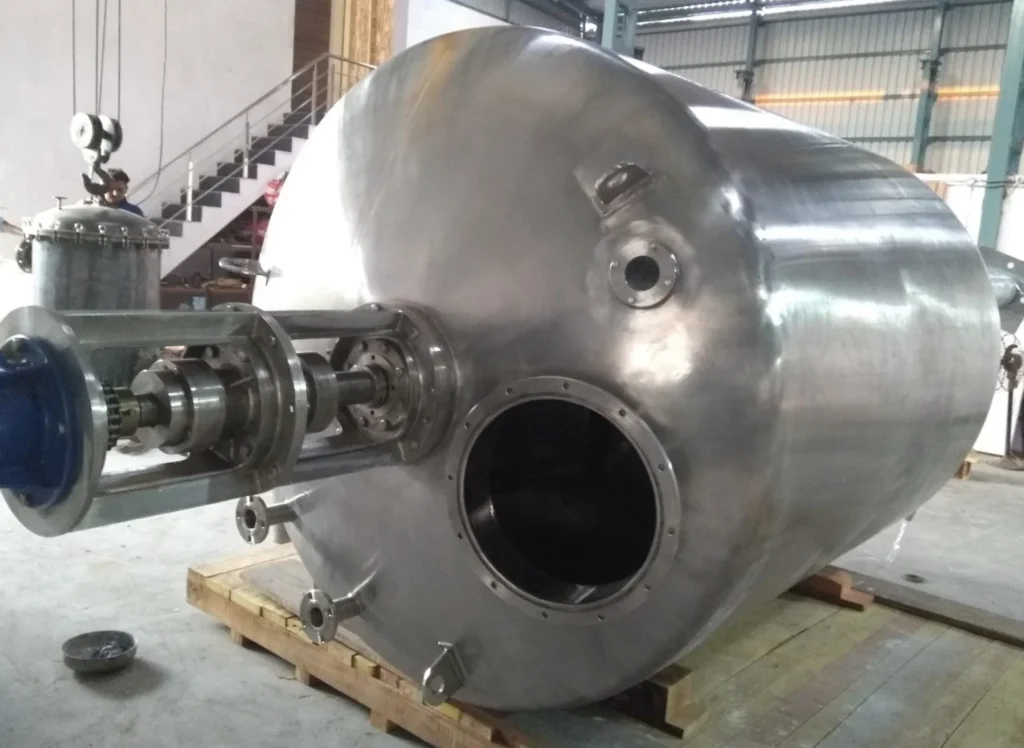

Stainless Steel Mixing Tank Exporter

TECHNICAL DETAILS OF THE STAINLESS STEEL MIXING TANK:

Title: Stainless Steel Mixing Tank

Category: High purity stainless steel processing equipment

Design code: cGMP

Description of SS Chemical Mixing Tank:  SS316 Vertical Oriented Top Blender Type Mixing Tank- 1800mm Dia. X 2000mm Height.

Type of Tank: Pharmaceutical Grade SS316 Blending Tank

Working Capacity: 5000Ltr. (Gross: 5500Ltr.)

Working Media: Sodium Bi-Sulfate + Oil Based Corrosion Inhibitor (MECHWAT Also providing solution for customize requirements.)

Working Pressure inside Tank: 2.0 Kg/Cm2

Type of Stirrer / Impeller: Propeller Type

Technical Details of Agitator Motor: 5.0 HP, 3 Phase, 4 Pole, Non-FLP, Flange End

Technical Details of Gear Box: AS 55 F20.4 P132 B5V1 / Suitable-71RPM

Bearing Type: Bearing No: Suitable for 80mm Dia. Shaft

Seal Type: Stuffing Box

M.O.C. of Stainless Steel Mixing Tank: AISI 316 Contact Parts (MECHWAT manufacturing various type Stainless Steel Tanks, Vessels and Silos for example AISI 304, as well as AISI 316)

Surface Finish of Stainless Steel Chemical Mixing Tank: Internally mirror polished and externally matt polished. (But MECHWAT Providing customized surface finishing facility like Matt Finish, Mirror Finish, Brush Finish, 2B Finish, Powder Coating and etc.)

Insulation Type: NA (Client Scope if required- Like 1) Rockwool 2) Glasswool 3) Nitrile Rubber

Cladding Type: NA (Client Scope if required- Like 1) Aluminium 24 G Thickness 2) SS304 1.6 G Thickness.

Nozzles / Connections:

• Man Hole Connection- 450mm ID x 150Class, Flange End (MOC- SS316)
• Raw Material Inlet Connection- 65NB x 150Class, Flange End (MOC- SS316)
• Product Outlet Connection- 65NB x 150Class, Flange End (MOC- SS316)
• Light Glass Connection- 75NB x 150Class, Flange End (MOC- SS316)
• Sight Glass Connection- 75NB x 150Class, Flange End (MOC- SS316)
• Air Vent Connection- 50NB x 150Class, Flange End (MOC- SS316)
• Spare Connection- 50NB x 150Class, Flange End (MOC- SS316)
• Sample Valve Connection- 25mm OD x 16Swg.,Tri-clover End (MOC- SS316)

Mounting Stand Support: Made from SS304 Heavy Duty Pipe Legs.

Lifting Lugs / Hooks: 3Nos. Lifting Lugs.

Covering Plate Ring: NA
